Description

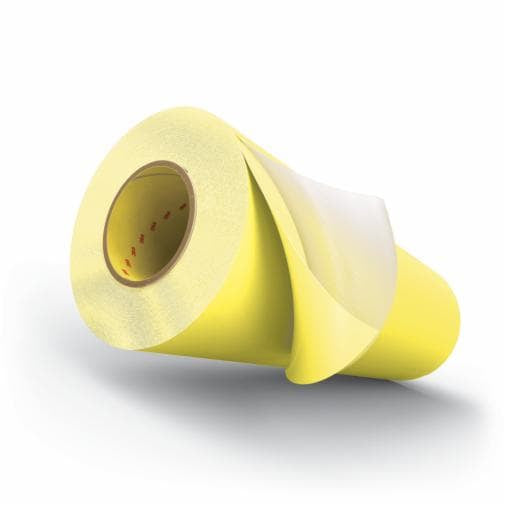

Shop 3M Cushion-Mount Plus Plate Mounting Tape E1315H Yellow 18 inch In Iraq Best Prices

Premium 0.015 inch yellow foam plate mounting tape with air release technology for flexographic printing. Features medium soft density, clean removal, and bubble-free mounting on 18 in x 36 yd roll.
The 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H is a premium yellow foam tape specifically engineered for flexographic plate mounting applications. This double-coated foam tape features advanced air release technology with plate-side adhesive designed to resist edge lifting on flexographic print plates. With a thickness of 0.015 inch (0.38 mm), this tape provides medium soft density foam ideal for printing combinations of solids and process with halftone dots. The innovative design eliminates air bubbles during mounting, ensuring bubble-free application and superior print quality. This professional-grade mounting tape is constructed with engineered acrylic adhesives on both sides of a polyethylene foam carrier, protected by a polycoated polyester release liner. The tape is specifically designed for mounting photopolymer plates to flexographic printing cylinders and sleeves, offering higher plate-side adhesion for challenging print conditions that use thick plates or small print sleeves. The crosshatched pattern on the air release liner creates unique micro-channels that allow entrapped air to escape, resulting in virtually bubble-free mounting with reduced edge lifting and cleaner print quality. The 3M Cushion-Mount Plus E1315H delivers exceptional performance with clean plate removal and easy demounting without adhesive residue. Each roll measures 18 inches in width by 36 yards in length, providing ample coverage for industrial flexographic printing operations. With a 24-month shelf life and 2-year warranty from the date of manufacture, this tape represents a reliable solution for maintaining tight caliper tolerance and consistent print registration across multiple manufacturing lots. The tape is manufactured to exacting standards to withstand long and high-speed print runs while maintaining superior performance.

Key Features

  • Advanced air release technology with crosshatched pattern eliminates air bubbles for virtually bubble-free mounting
  • Double-coated foam tape with differential acrylate adhesive on both plate and cylinder sides
  • Medium soft density yellow foam ideal for combination printing with solids and halftone dots
  • High plate-side adhesion designed to resist edge lifting on flexographic print plates
  • Clean removal from both print plates and printing cylinders without adhesive residue
  • Engineered for tight caliper tolerance to maintain consistent print registration across multiple manufacturing lots
  • Designed to withstand long and high-speed print runs with superior performance
  • Compatible with photopolymer plates, stainless steel cylinders, urethane sleeves, and composite sleeves

Technical Specifications

Specification Value
Product NumberE1315H
3M ID7100314505
UPC00068060006202
Application Thickness (Imperial)15 mil
Application Thickness (Metric)0.381 mm
Manufactured Target Thickness (Imperial)0.017 inch
Manufactured Target Thickness (Metric)0.43 mm
Overall Width (Imperial)18 inches
Overall Width (Metric)457 mm
Overall Length (Imperial)36 yards
Overall Length (Metric)32.918 meters
Product ColorYellow
Backing MaterialPolyethylene Foam
Adhesive TypeDifferential Acrylate
Primary Liner MaterialPolycoated Polyester
Primary Liner Thickness (Imperial)4.5 mil
Primary Liner Thickness (Metric)0.11 mm
Print QualityCombination Printing - Medium Soft
Print Quality Series13 Series
ApplicationFlexographic Plate Mounting
IndustriesPrint
BrandCushion-Mount Plus
Clean RemovalYes
Urethane Sleeves CompatibleYes
Shelf Life24 months
Warranty Period2 years from date of manufacture
Packaging1 Roll per Case
Plate Type CompatibilityPhotopolymer Plates
Cylinder Type CompatibilityStainless Steel Cylinder, Urethane Sleeve, Composite Sleeve

Order 3M Cushion-Mount Plus Plate Mounting Tape E1315H Yellow 18 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
