Description

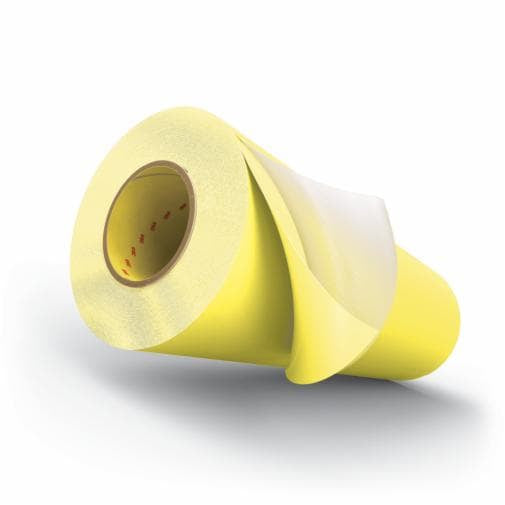

Shop 3M Cushion-Mount Plus Plate Mounting Tape E1315H Yellow In Iraq Best Prices

Professional-grade 3M Cushion-Mount Plus yellow foam plate mounting tape with air release technology for flexographic printing. Features differential acrylate adhesive, medium soft density foam, and bubble-free mounting. 54 in x 36 yd roll.

The 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H is a premium yellow foam tape specifically engineered for flexographic printing applications. This 0.015 inch (0.38 mm) double coated foam tape features advanced air release technology with plate side adhesive designed to resist edge lifting on flexographic print plates. The medium soft density foam is ideal for printing combinations of solids and process with halftone dots, providing superior plate mounting performance on flexographic printing cylinders and sleeves. This professional-grade mounting tape is manufactured with engineered acrylic adhesives (Differential Acrylate system) on both sides of the foam carrier, protected by a release liner on one side. The innovative cross-hatch pattern on the air release liner imprints unique micro-channels into the easy mount adhesive, allowing entrapped air to escape for virtually bubble-free mounting. The plate side adhesive provides higher adhesion for challenging print conditions using thick plates or small print sleeves, while the non-linered side adhesive is specifically designed for clean mounting to flexographic printing cylinders or sleeves with easy application and clean removal during demounting. With a roll size of 54 inches wide by 36 yards long, this tape delivers consistent quality and tight caliper tolerance, allowing printers to use tape from different manufacturing lots while maintaining tight print registration. The compressible foam construction withstands long and high-speed print runs, making it an essential product for professional flexographic printing operations seeking reliable plate mounting solutions with reduced air entrapment and superior print quality.

Key Features

Double coated foam tape with advanced air release feature for bubble-free mounting
Medium soft density foam ideal for combination printing with solids and halftone dots
Differential acrylate adhesive system on both sides for superior plate and cylinder adhesion
Cross-hatch pattern release liner creates micro-channels for easy air escape
High plate side adhesion designed to resist edge lifting during high-speed printing
Clean removal from both print plates and printing cylinders without adhesive residue
Tight caliper tolerance for consistent print registration across multiple manufacturing lots
Engineered for long and high-speed print runs with compressible foam construction
Specifically designed for flexographic photopolymer plate mounting
Professional-grade industrial product for trained occupational use

Technical Specifications

Specification	Value
Product Number	E1315H / 1315H
3M ID	7100314579
UPC	00068060006196
Application Thickness (Imperial)	15 mil
Application Thickness (Metric)	0.381 mm
Manufactured Target Thickness (Imperial)	0.017 inch
Manufactured Target Thickness (Metric)	0.43 mm
Overall Width (Imperial)	54 in
Overall Width (Metric)	1,371.6 mm
Overall Length (Imperial)	36 yd
Overall Length (Metric)	32.918 m
Product Color	Yellow
Adhesive Type	Differential Acrylate
Backing Material	Polyethylene Foam
Primary Liner	Polycoated Polyester
Primary Liner Thickness (Imperial)	4.5 mil
Primary Liner Thickness (Metric)	0.11 mm
Print Quality	Combination Printing - Medium Soft
Print Quality Series	13 Series
Application	Flexographic Plate Mounting
Industries	Print
Brands	Cushion-Mount™
Clean Removal	Yes
Urethane Sleeves Compatible	Yes
Shelf Life	24 Months
Warranty Period	2 Years from Date of Manufacture
Packaging	1 Roll/Case
Plate Types	Photopolymeric Plates
Cylinder Types	Stainless Steel Cylinder, Urethane Sleeve, Composite Sleeve

Order 3M Cushion-Mount Plus Plate Mounting Tape E1315H Yellow at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
