Professional-grade tan foam flexographic plate mounting tape with air release technology, 15 mil thickness, designed for bubble-free mounting and clean removal. Ideal for process printing with halftone dots on high-speed presses.

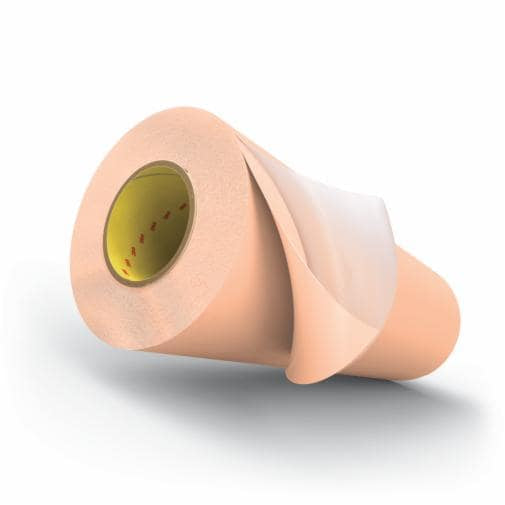

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115 is a premium tan foam tape specifically engineered for mounting flexographic print plates to cylinders and sleeves. This double-coated foam tape features an innovative air release technology with a crosshatched pattern that allows entrapped air to escape, ensuring bubble-free mounting and superior print quality. The differential acrylate adhesive system provides secure bonding on the plate side for easy removal without adhesive residue, while the sleeve/cylinder side adhesive ensures clean demounting from printing equipment.
Designed for process printing applications with halftone dots, this 15 mil thickness tape delivers exceptional performance in high-speed printing operations. The soft density foam, indicated by the tan color, is ideal for process printing and provides excellent resistance to edge lifting during press runs. The tape maintains tight caliper tolerance, allowing printers to use tape from different manufacturing lots while keeping tight print registration for consistent, high-quality results.
Manufactured with engineered acrylic adhesives and a polyethylene foam backing, the E1115 tape is protected by a polycoated polyester release liner. With a 24-month shelf life and 2-year warranty from date of manufacture, this professional-grade flexographic plate mounting tape has been trusted by printing plants for decades to improve work quality and operational efficiency. Ideal for narrow web presses used in tag and label printing applications.
Key Features
- Double-coated foam tape with air release feature for bubble-free mounting
- Differential acrylate adhesive system on both sides with different mounting characteristics
- Soft density foam ideal for process printing with halftone dots
- Crosshatched release liner pattern creates microchannels for easy air escape
- Clean removal without adhesive residue from both plates and printing cylinders
- Tight caliper tolerance for consistent print registration across multiple manufacturing lots
- Excellent edge lifting resistance during high-speed press operations
- Securely bonds flexographic photopolymer plates to sleeves or steel cylinders
- Tan foam color indicates soft density for optimal printing performance
- Engineered for narrow web presses used in tag and label printing
Technical Specifications
| Specification |
Value |
| Product Number | E1115 |
| 3M ID | 7100311492 |
| UPC | 00068060004970 |
| Overall Width (Imperial) | 27 inches |
| Overall Width (Metric) | 685.8 millimeters |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.918 meters |
| Application Thickness (Imperial) | 15 mil |
| Application Thickness (Metric) | 0.381 millimeters |
| Product Color | Tan |
| Adhesive Type | Differential Acrylate |
| Backing Material | Polyethylene Foam |
| Primary Liner | Polycoated Polyester |
| Primary Liner Thickness (Imperial) | 4.5 mil |
| Primary Liner Thickness (Metric) | 0.11 millimeters |
| Application | Flexographic Plate Mounting |
| Print Quality | Process Printing (11 Series) |
| Clean Removal | Yes |
| Urethane Sleeves Compatible | Yes |
| Shelf Life | 24 Months |
| Warranty Period | 2 Years from Date of Manufacture |
| Brand | 3M Cushion-Mount™ |
| Industry | Print |
| Packaging | 1 Roll per Case |
| Foam Density | Soft Density |
Order 3M Cushion-Mount Plus Plate Mounting Tape E1115 Flexographic at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
