Description

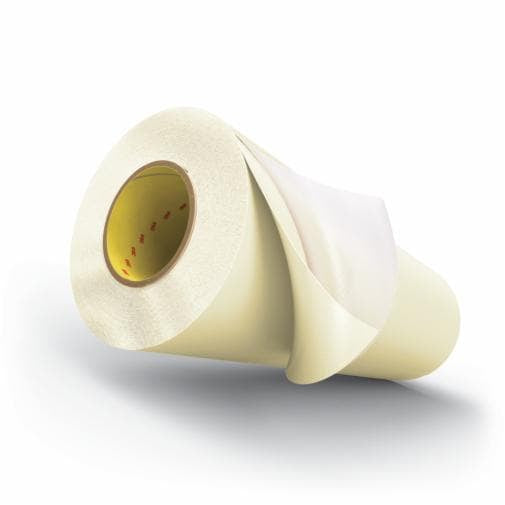

Shop 3M Cushion-Mount Plus Plate Mounting Tape E1020 White In Iraq Best Prices

Professional 20 mil white foam flexographic plate mounting tape with air release technology, 54 in x 36 yd, designed for bubble-free mounting on print cylinders and sleeves with easy clean removal.

The 3M™ Cushion-Mount™ Plus Plate Mounting Tape E1020 is a professional-grade white foam mounting tape specifically designed for flexographic printing applications. This double-coated foam tape features an innovative air release technology with a plate-side adhesive system engineered to remove with minimal force from flexographic print plates. The tape measures 54 inches in width by 36 yards in length with a 20 mil thickness, making it ideal for wide-web presses used in flexible packaging and commercial printing operations. This advanced mounting solution features a standard medium-density foam construction that delivers exceptional performance for printing combinations of solids and process colors with halftone dots. The differential acrylate adhesive system on each side of the foam carrier is protected by a specialized release liner on one side. The unique air release technology incorporates a crosshatched pattern in the release liner that creates micro-channels in the easy-mount adhesive, allowing entrapped air to escape naturally during application. This ensures virtually bubble-free mounting between the tape and plate, as well as between the tape and the printing sleeve or cylinder. The E1020 tape securely bonds flexographic photopolymer plates to print sleeves or steel cylinders while preventing plate edge lifting during high-speed printing operations. The engineered acrylic adhesive on the lined plate-side is specifically designed for photopolymer plate mounting, while the non-lined sleeve/cylinder side adhesive ensures easy application and clean removal when demounting. The tape maintains tight contact with reduced edge lifting throughout extended print runs, helping printing plants improve work quality and operational efficiency. With a 2-year warranty from the date of manufacture and engineered for very tight caliper tolerance, this tape allows printers to use rolls from different manufacturing lots while maintaining consistent print registration.

Key Features

Double-coated foam tape with advanced air release technology for bubble-free mounting
Differential acrylate adhesive system engineered for easy plate removal with minimal force
Standard medium-density white foam ideal for combination solids and halftone process printing
Crosshatched release liner creates micro-channels for natural air escape during application
Securely bonds plates to print sleeves or steel cylinders while preventing edge lifting
Easy clean demounting from both flexographic plates and printing cylinders without adhesive residue
Engineered for very tight caliper tolerance allowing consistent print registration across manufacturing lots
Designed for high-speed, long-run printing operations with excellent resistance to lifting on press
Compressible foam construction withstands extended and high-speed print runs
Professional-grade tape for wide-web presses in flexible packaging and commercial printing

Technical Specifications

Specification	Value
Product Model	E1020
Overall Width (Imperial)	54 inches
Overall Width (Metric)	1,371.6 mm
Overall Length (Imperial)	36 yards
Overall Length (Metric)	32.918 meters
Application Thickness (Imperial)	20 mil
Application Thickness (Metric)	0.508 mm
Product Color	White
Backing Material	Polyethylene Foam
Adhesive Type	Differential Acrylate
Foam Density	Standard Medium Density
Primary Liner Material	Polycoated Polyester
Primary Liner Thickness (Imperial)	4.5 mil
Primary Liner Thickness (Metric)	0.11 mm
Print Quality	Combination Printing - Standard
Print Quality Series	10 Series
Brand	3M Cushion-Mount™
Application	Flexographic Plate Mounting
Industry	Print
Urethane Sleeves Compatible	Yes
Warranty Period	2 Years from Date of Manufacture
3M Product Number	E1020
3M ID	7100311265
UPC	00068060004840
Quantity per Case	1 Roll

Order 3M Cushion-Mount Plus Plate Mounting Tape E1020 White at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
