Shop 3M Cushion-Mount Plus L1520 Purple Flexographic Plate Mounting Tape In Iraq Best Prices

Premium purple flexographic plate mounting tape with air release technology, medium density foam, and differential acrylate adhesive for bubble-free mounting and clean plate removal.

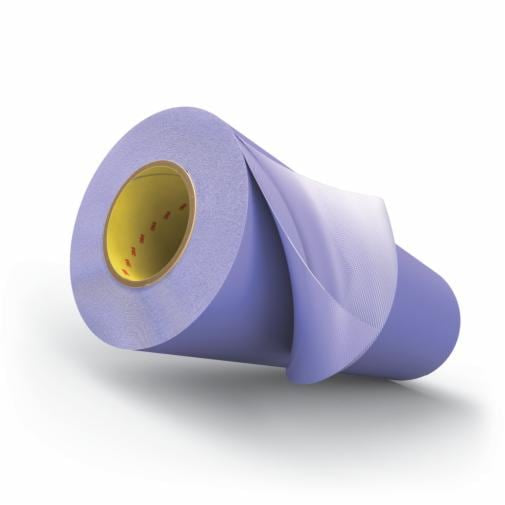

3M™ Cushion-Mount™ Plus Plate Mounting Tape L1520 is a premium purple foam tape engineered specifically for flexographic printing applications. This double-coated foam tape features advanced air release technology with differential acrylate adhesive designed to remove with minimal force even in the presence of ink contaminants on flexographic print plates. The 0.020 inch (0.51 mm) thick tape provides medium density foam that is ideal for printing combinations of solids and process with halftone dots, delivering high-quality medium combination prints. This professional-grade plate mounting solution features engineered acrylic adhesives on both sides - the plate-side adhesive is optimized for mounting photopolymer plates with easy removal, while the sleeve/cylinder-side adhesive ensures clean application and demounting from flexographic printing cylinders or sleeves. The unique crosshatched air release liner pattern imprints micro-channels into the easy mount adhesive, allowing entrapped air to escape and ensuring virtually bubble-free mounting. Print plates mounted on L1520 will have no air bubbles under the plate, resulting in faster setup times and smoother surfaces for cleaner print quality and higher productivity. The tape securely bonds flexographic photopolymer plates to print sleeves or steel cylinders to prevent plate edge lifting during printing, while maintaining excellent resistance to lifting on press and tolerance to ink contaminants. With tight caliper tolerance allowing printers to use tape from different manufacturing lots while maintaining tight print registration, this cushioned tape is constructed to withstand long and high-speed print runs. The compressible foam backing material combined with polycoated polyester liners provides durability and reliability for decades of proven performance in printing plants worldwide.

Key Features

Double-coated foam tape with advanced air release feature for bubble-free mounting
Medium density purple foam ideal for combination printing with solids and halftone dots
Differential acrylate adhesive removes easily with less force even with ink contaminants
Crosshatched air release liner creates micro-channels for rapid air escape and setup
Tight caliper tolerance allows use of tape from different manufacturing lots
Excellent resistance to plate edge lifting during high-speed print runs
Clean removal from printing cylinders and sleeves without adhesive residue
Engineered for 20 mil application thickness with polyethylene foam backing
24-month shelf life with proven decades of performance in printing plants

Technical Specifications

Specification	Value
Product Number	L1520
3M ID	7100318516
UPC Code	00068060006448
Overall Width (Imperial)	54 in
Overall Width (Metric)	137.16 cm
Overall Length (Imperial)	36 yd
Overall Length (Metric)	32.981 m
Application Thickness (Imperial)	20 mil
Application Thickness (Metric)	0.5 mm
Product Color	Purple
Adhesive Type	Differential Acrylate
Backing Material	Polyethylene Foam
Primary Liner	Polycoated Polyester
Primary Liner Thickness (Imperial)	4.5 mil
Primary Liner Thickness (Metric)	0.11 mm
Print Quality	Combination Printing - Medium
Print Quality Series	15 Series
Brand	Cushion-Mount™
Application Type	Flexographic Plate Mounting
Industries	Paper, Print
Shelf Life	24 Months
Package Configuration	1 Roll/Case
Use Type	Industrial/Occupational Use Only

Order 3M Cushion-Mount Plus L1520 Purple Flexographic Plate Mounting Tape at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
