FAA PMA-approved aerospace corrosion prevention tape with flame resistance for aircraft floor protection

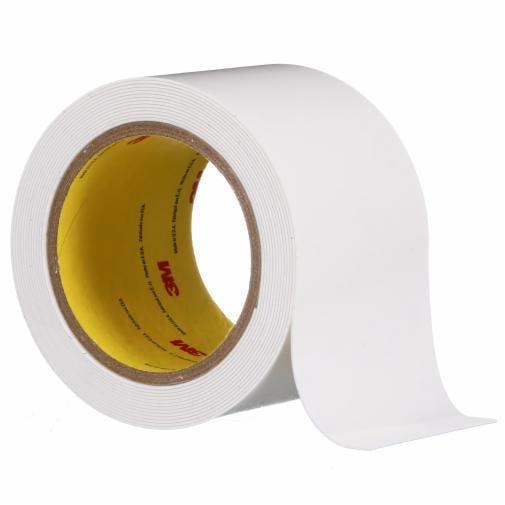

3M Corrosion Prevention Sealing Tape 9143FR is a specialized aerospace-grade protective tape designed to safeguard aircraft interior floor systems from corrosion damage. This 43-mil thick tape provides an effective sealing layer between aircraft floor beams and floorboards, particularly in high-moisture areas such as entryways, galleys, lavatories, and cargo compartments. The tape creates a protective barrier that prevents fluids from spills and leaks from migrating into the underlying floor support system, while also preventing condensation from forming on sub-floor structures that could lead to costly corrosion damage.
The 9143FR tape features exceptional flame resistance, meeting FAA requirements per 14 CFR 25.853 (a), Appendix F, Part I (a) (1) (ii) with a 12-second vertical burn rating, making it suitable for fly-away aerospace applications. It is FAA PMA approved and listed on 3M Aerospace FAA PMA No. PQOO4414CE, Supplement No. 4, ensuring compliance with stringent aviation safety standards. The tape demonstrates excellent adhesion strength of 27 oz/in and tensile strength of 36 lb/in, providing durable protection over extended service life.
Designed with superior shop handling characteristics, the 9143FR tape can be easily cut with scissors or common shop tools and is repositionable during application, allowing technicians flexibility during installation. Upon removal after service life, the tape leaves little to no residue, making maintenance and re-application straightforward. With low-peel FR acrylic adhesive and polyester backing, this tape operates reliably across a wide temperature range from -40°F to 180°F, providing consistent performance in diverse aircraft cabin environments.
Key Features
- Excellent corrosion resistance for aircraft interior floor systems
- Flame resistant per 14 CFR 25.853 (a), Appendix F with 12-second vertical burn rating
- FAA PMA approved for aerospace fly-away applications
- Easy to cut with scissors and repositionable during application
- Clean removal after service with little to no residue
Technical Specifications
| Specification |
Value |
| Product Number | 9143FR |
| 3M ID | B5005378019 |
| Thickness | 43 mil |
| Adhesive Type | Low Peel FR Acrylic |
| Backing Material | Polyester |
| Adhesion Strength (Imperial) | 27 oz/in |
| Adhesion Strength (Metric) | 30 N/100mm |
| Tensile Strength (Imperial) | 36 lb/in |
| Tensile Strength (Metric) | 630 N/100mm |
| Maximum Operating Temperature (Fahrenheit) | 180°F |
| Maximum Operating Temperature (Celsius) | 82°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Minimum Installation Temperature (Fahrenheit) | 60°F |
| Minimum Installation Temperature (Celsius) | 15°C |
| Application | Corrosion Protection, Surface Protection |
| Product Usage | Aerospace, Aircraft Cargo Compartments, Aircraft Galleys, Aircraft Lavatories |
| Flame Resistance Rating | 14 CFR 25.853 (a), Appendix F, Part I (a) (1) (ii), 12-second vertical burn |
| FAA Certification | FAA PMA approved - PMA No. PQOO4414CE, Supplement No. 4 |
| Brand | 3M |
Order 3M Corrosion Prevention Sealing Tape 9143FR Aircraft at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
