Shop 3M Conductive Aluminum Foil Tape 3302 Silver 60in x 36yd In Iraq Best Prices
Professional-grade conductive aluminum foil tape with aggressive acrylic adhesive for EMI/RFI shielding, electronics manufacturing, and circuit board applications. UL510 listed, temperature resistant from -18°C to 107°C, 60 inches wide by 36 yards long.

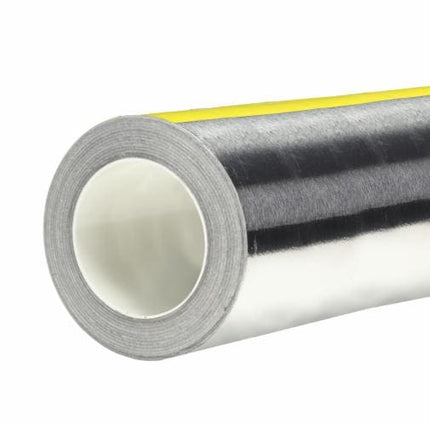

3M™ Conductive Aluminum Foil Tape 3302 is a high-strength, dead soft aluminum foil coated tape specifically engineered for printed circuit manufacture and repair, shielding applications in the electronics industry, and low-level EMI and RFI shielding applications. This professional-grade tape features a 2 mil aluminum foil backing that is durable and malleable, allowing it to conform to uneven or irregular surfaces with ease. The tape is coated with an aggressive conductive acrylic adhesive system that bonds exceptionally well to a diverse selection of materials, including those with low surface energy and difficult textures. It provides excellent "wetting out" capabilities to all surfaces, ensuring superior adhesion and performance.
This durable, UL510 listed tape is resistant to flame, moisture, weather, UV degradation, and many chemicals, making it ideal for both indoor and outdoor applications. The tape functions as a thermally conductive solution, perfect for heating and cooling efficiency applications while helping to reflect heat and light. With a wide temperature range from -18°C (0°F) to 107°C (225°F), this tape performs continuously in a variety of low and high-temperature environments. The aluminum foil backing works exceptionally well for EMI/RFI shielding applications, providing reliable electromagnetic interference and radio frequency interference protection.
Each roll measures 60 inches wide by 36 yards long with a total tape thickness of 3.5 mil and comes mounted on a glassine paper release liner to preserve the adhesive prior to application. With a tensile strength of 19 lb/in and only 3% elongation at break, this tape offers robust performance for industrial and occupational use. For all weather electronic shielding needs and demanding conductive applications, 3M™ Conductive Aluminum Foil Tape 3302 is the professional choice.
Key Features
- High-strength dead soft aluminum foil backing that is durable and malleable for irregular surfaces
- Conductive acrylic adhesive with excellent wetting out capabilities to all textured surfaces
- UL510 listed and resistant to flame, moisture, weather, UV degradation, and chemicals
- Thermally conductive for heating and cooling efficiency applications
- Wide temperature range from -18°C to 107°C for diverse environmental conditions
- Ideal for EMI/RFI shielding in electronics industry applications
- Superior bonding to low surface energy materials and difficult textures
- Glassine paper release liner for easy application and adhesive preservation
Technical Specifications
| Specification |
Value |
| Product Number | 3302 |
| Backing Material | Aluminum Foil |
| Backing Thickness (Imperial) | 2 mil |
| Backing Thickness (Metric) | 0.05 mm |
| Total Tape Thickness | 3.5 mil (0.09 mm) |
| Adhesive Type | Conductive Acrylic |
| Overall Width (Imperial) | 60 in |
| Overall Width (Metric) | 1,524 mm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.91 m |
| Tensile Strength (Imperial) | 19 lb/in |
| Tensile Strength (Metric) | 33.3 N/100mm |
| Elongation at Break | 3% |
| Adhesive Thickness | 0.05 mm |
| Primary Liner | Glassine Paper |
| Product Color | Silver |
| Minimum Operating Temperature (Fahrenheit) | 0°F |
| Minimum Operating Temperature (Celsius) | -18°C |
| Maximum Operating Temperature (Fahrenheit) | 225°F |
| Maximum Operating Temperature (Celsius) | 107°C |
| Specifications Met | UL 510 |
| Units per Case | 1 Roll |
| 3M ID | 7100160429 |
| UPC | 00051125658188 |
| Brand | 3M™ |
| Adhesive Thickness (Metric) | 0.05 mm |
Order 3M Conductive Aluminum Foil Tape 3302 Silver 60in x 36yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
