High-strength conductive aluminum foil tape with dead soft backing for EMI/RFI shielding, circuit repair, and electronics applications. Features aggressive acrylic adhesive, wide temperature range, and excellent conformability to irregular surfaces.

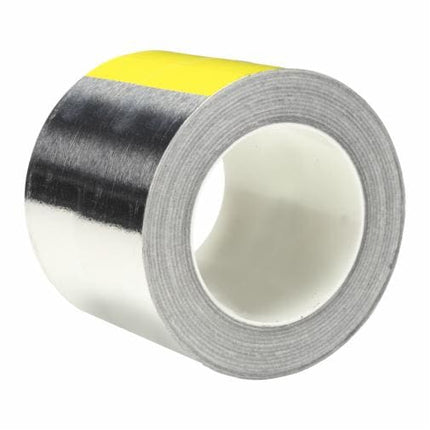

3M™ Conductive Aluminum Foil Tape 3302 is a high-strength, dead soft aluminum foil coated tape specifically designed for printed circuit manufacture and repair, shielding applications in the electronics industry, and low-level EMI and RFI shielding applications. This premium tape features a 2 mil aluminum foil backing that is durable and malleable, allowing it to conform to uneven or irregular surfaces with ease. The dead soft aluminum foil backing ensures flexibility while maintaining structural integrity for demanding industrial applications.
The tape is coated with an aggressive conductive acrylic adhesive system that bonds exceptionally well to a diverse selection of materials, including those with low surface energy and difficult textures. It features excellent "wetting out" capabilities to all textured surfaces, ensuring reliable adhesion in challenging environments. This thermally conductive tape is ideal for heating and cooling efficiency applications and helps reflect heat and light effectively. The tape resists flame, moisture, weather, UV degradation, and many chemicals, making it suitable for all-weather electronic shielding needs.
With a wide temperature range from -40°F/-40°C to 250°F/121°C, this UL510 listed tape can be used in a variety of low and high-temperature applications. Each case contains 2 rolls of 36-yard tape, with an overall width of 4 inches (101.6 mm) and total thickness of 3.5 mil. The glassine paper release liner helps preserve the adhesive prior to application and assists in proper tape placement. Perfect for aerospace, automotive, construction, electronics, and military applications requiring reliable EMI/RFI shielding.
Key Features
- High strength aluminum foil backing is durable and malleable to conform to uneven or irregular surfaces
- Conductive acrylic adhesive with excellent wetting out capabilities to all textured surfaces
- Bonds extremely well to low surface energy materials and difficult textured surfaces
- Aluminum foil backing works effectively for EMI/RFI shielding applications in electronics
- Wide temperature range from -40°F/-40°C to 250°F/121°C for diverse applications
- Resistant to flame, moisture, weather, UV degradation, and many chemicals
- Thermally conductive for heating and cooling efficiency applications
- UL510 listed for compliance with industry standards
- Dead soft aluminum foil provides flexibility and conformability
- Glassine paper release liner for easy application and adhesive preservation
Technical Specifications
| Specification |
Value |
| Product Number | 3M 3302 |
| UPC | 00051125658201 |
| Backing Material | Aluminum Foil (Dead Soft) |
| Backing Thickness (Imperial) | 2 mil |
| Backing Thickness (Metric) | 0.05 mm |
| Total Tape Thickness (Imperial) | 3.5 mil |
| Total Tape Thickness (Metric) | 0.09 mm |
| Adhesive Type | Conductive Acrylic |
| Overall Width (Imperial) | 4 in |
| Overall Width (Metric) | 101.6 mm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.91 m |
| Tensile Strength (Imperial) | 19 lb/in |
| Tensile Strength (Metric) | 33.3 N/100mm |
| Elongation at Break | 3% |
| Primary Liner | Glassine Paper |
| Adhesive Thickness (Metric) | 0.05 mm |
| Minimum Operating Temperature (Fahrenheit) | 0°F |
| Minimum Operating Temperature (Celsius) | -18°C |
| Maximum Operating Temperature (Fahrenheit) | 225°F |
| Maximum Operating Temperature (Celsius) | 107°C |
| Extended Temperature Range (Fahrenheit) | -40°F to 250°F |
| Extended Temperature Range (Celsius) | -40°C to 121°C |
| Product Color | Silver |
| Units per Case | 2 Rolls |
| Specifications Met | UL 510 |
| Brand | 3M™ |
| Industries | Aerospace, Automotive, Construction, Electronics, General Industrial, Metalworking, Military & Government, Specialty Vehicles, Transportation |
| Applications | Printed circuit manufacture and repair, EMI/RFI shielding, electronics industry shielding |
