Professional EMI/RFI shielding tape with aluminum foil backing, pressure-sensitive acrylic adhesive, flame-retardant, 600V rated, UL listed, RoHS compliant, 18 rolls per case

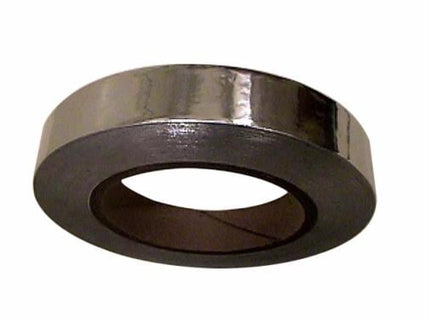

3M™ Aluminum Foil Tape 1120 is a professional-grade EMI/RFI shielding tape designed for industrial and occupational applications requiring superior electrical conductivity and flame retardancy. This high-performance tape features an embossed aluminum foil backing with a pressure-sensitive, electrically conductive acrylic adhesive that ensures firm adherence to various surfaces. The tape comes on a removable liner for easy die-cutting and handling, making it ideal for both standard and custom applications.
This tape is highly conformable and resistant to oxidation, solvents, and oils, making it suitable for demanding industrial environments. Rated for 600V dry applications, it provides reliable EMI/RFI shielding and cable wrapping capabilities. The flame-retardant construction meets UL listing requirements and complies with RoHS 2011/65/EU standards, ensuring safety and regulatory compliance for critical applications in electronics, telecommunications, and industrial equipment manufacturing.
Each case contains 18 rolls of tape, with each roll measuring 1/2 inch in width and 36 yards in length. The 2 mil thick aluminum foil backing provides excellent conductivity while maintaining flexibility for wrapping around irregular shapes and surfaces. This product is intended for trained industrial and occupational customers for workplace use only.
Key Features
- Highly conformable aluminum foil backing with embossed surface for superior conductivity
- Pressure-sensitive electrically conductive acrylic adhesive ensures firm adherence
- Flame-retardant construction meeting UL listing and safety standards
- Resistant to oxidation, solvents, oils, and harsh industrial environments
- Removable liner for easy die-cutting, handling, and custom applications
- Rated for 600V dry applications with excellent EMI/RFI shielding capabilities
- RoHS 2011/65/EU compliant for regulatory compliance
- Suitable for cable wrapping and complex electrical applications
Technical Specifications
| Specification |
Value |
| Product Name | 3M Aluminum Foil Tape 1120 |
| Part Number | 1120 1/2"X36YD |
| 3M ID | 7010397449 |
| UPC Code | 00051128553268 |
| Backing Material | Smooth Aluminum Foil |
| Backing Thickness (Imperial) | 2 mil |
| Backing Thickness (Metric) | 0.05 mm |
| Overall Width (Imperial) | 0.5 inch |
| Overall Width (Metric) | 12.7 mm |
| Overall Length (Imperial) | 36 yards |
| Overall Length (Metric) | 32.9 meters |
| Total Tape Thickness without Liner | 0.1 mm |
| Product Color | Silver |
| Adhesive Type | Pressure-Sensitive Acrylic, Electrically Conductive |
| Voltage Rating | 600V (Dry Applications) |
| Flame Retardant | Yes |
| UL Listed | Yes |
| RoHS Compliance | RoHS 2011/65/EU Compliant |
| Quantity per Case | 18 Rolls |
| Application | EMI/RFI Shielding, Cable Wrapping, Industrial Use |
| Removable Liner | Yes, for easy die-cutting and handling |
| Chemical Resistance | Resistant to Oxidation, Solvents, and Oils |
Order 3M Aluminum Foil Tape 1120 EMI Shielding Half Inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
