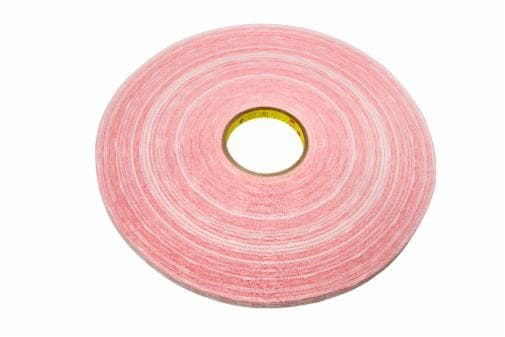

Premium 1/2 inch x 1000 yard adhesive transfer tape with extended paper liner, acrylic pressure-sensitive adhesive, ideal for paper-to-paper bonding and industrial applications, 12-roll case
3M™ Adhesive Transfer Tape Extended Liner 920XL is a premium general-purpose adhesive transfer tape designed for industrial and occupational applications. This translucent tape features pressure-sensitive acrylic adhesive pre-applied to a removable extended paper liner, making it ideal for bonding a variety of different materials. The extended liner extends beyond the width of the adhesive to provide easy liner starting and removal, featuring dry edge and finger lift edge design on each side for convenient handling. With dimensions of 1/2 inch width by 1000 yards length and a total tape thickness of 1 mil without liner, this product comes in a convenient 12-roll case format.
The 920XL tape is constructed with 42.5# densified kraft paper liner in white color with 2.5 mil thickness, providing excellent support and durability during application. The acrylic adhesive offers high initial adhesion and good shear holding power, making it particularly suitable for paper-to-paper applications and bonding to low-energy surfaces. The tape maintains performance across a wide temperature range from -40°F to 180°F, ensuring reliable sealing on various substrates including coated and uncoated papers, films, plastics, foams, and metals.
Recommended for cardboard shipping boxes, overnight mailer envelopes, pharmaceutical outserts, point of purchase displays, core starting, business forms, and various paper-to-paper applications. This industrial-grade product is specifically designed for trained occupational users in manufacturing, packaging, print, retail, medical, and general industrial settings. Each roll provides 1000 yards of continuous adhesive tape, ensuring extended coverage for high-volume applications.
Key Features
- Pressure-sensitive acrylic adhesive for reliable bonding on multiple substrates
- Extended paper liner design for easy liner starting and removal
- Dry edge and finger lift edges for convenient handling and reduced equipment maintenance
- Tack-free tape roll edges for improved ease of use and equipment care
- Wide temperature operating range from -40°F to 180°F for versatile applications
- High initial adhesion and excellent shear holding power for paper materials
- Available in convenient 12-roll case format for industrial use
- Compatible with coated and uncoated papers, films, plastics, foams, and metals
Technical Specifications
| Specification |
Value |
| Product Name | 3M Adhesive Transfer Tape Extended Liner 920XL |
| Part Number | 920XL |
| 3M ID | 7000048424 |
| UPC | 00021200047268 |
| Overall Width (Imperial) | 0.5 inches |
| Overall Width (Metric) | 12.7 mm |
| Overall Length (Imperial) | 1000 yards |
| Overall Length (Metric) | 914 meters |
| Total Tape Thickness without Liner (Imperial) | 1 mil |
| Total Tape Thickness without Liner (Metric) | 0.025 mm |
| Adhesive Type | Acrylic Pressure-Sensitive |
| Primary Liner Material | 42.5# Densified Kraft Paper |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 2.5 mil |
| Primary Liner Thickness (Metric) | 0.06 mm |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Maximum Operating Temperature (Fahrenheit) | 180°F |
| Smallest Saleable Unit | Roll |
| Units per Case | 12 rolls |
| Brand | 3M |
| Industries | General Industrial, Medical, Packaging, Paper, Print, Retail |
| Liner Edge Design | Dry edge and finger lift edge |
| Adhesive Properties | High initial adhesion and good shear holding power |
| Application Type | Bonding, Mounting, Transfer |
| Intended Use | Industrial and occupational use only |
Order 3M Adhesive Transfer Tape Extended Liner 920XL 1/2 inch at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
