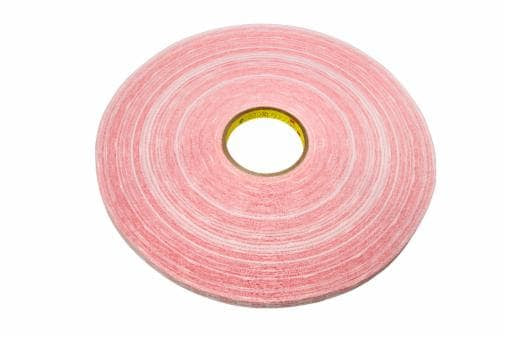

Industrial-grade pressure-sensitive adhesive transfer tape with extended liner for easy application, 1 inch width, 1000 yards length, acrylic adhesive, ideal for paper bonding and shipping applications.
The 3M™ Adhesive Transfer Tape Extended Liner 920XL is a general-purpose pressure-sensitive adhesive tape designed for reliable bonding across a variety of substrates and applications. This industrial-grade tape features an acrylic adhesive mounted on a removable extended paper liner, providing exceptional ease of use and consistent performance. The extended liner design extends beyond the width of the adhesive to facilitate easy liner starting and removal, featuring dry edge and finger lift edges on each side for convenient handling. With dimensions of 1 inch width and 1000 yards length, this tape delivers 1 mil thickness without the liner, making it ideal for high-volume production environments requiring consistent, dependable adhesion.
This tape is engineered with pressure-sensitive adhesive technology that bonds effectively to both high and low surface energy substrates, including coated and uncoated papers, films, plastics, foams, and metals. The 3M™ Adhesive 400 acrylic formulation provides high initial adhesion and excellent shear holding power, making it particularly suitable for paper-to-paper applications and other demanding bonding tasks. The primary liner consists of 42.5# densified kraft paper with a white color and 2.5 mil thickness, ensuring durability and ease of handling throughout the application process. The tape maintains performance across a wide temperature range from -40°F to 180°F, making it suitable for diverse environmental conditions and storage requirements.
Recommended for applications including cardboard shipping boxes, overnight mailer envelopes, pharmaceutical outserts, point-of-purchase displays, core starting, business forms, and various paper-to-paper bonding tasks. Each case contains 9 rolls, providing substantial supply for industrial and occupational use. This product is specifically formulated for industrial and occupational applications and is not intended for consumer sale or use. It represents 3M's commitment to delivering innovative adhesive solutions that improve manufacturing efficiency and product quality for businesses worldwide.
Key Features
- Extended liner design for easy starting and removal with dry edge and finger lift edges
- Pressure-sensitive acrylic adhesive ideal for bonding various materials
- Tack-free tape roll edges for reduced equipment maintenance and ease of use
- Compatible with high and low surface energy substrates including papers, films, plastics, foams, and metals
- Wide operating temperature range from -40°F to 180°F for diverse environmental conditions
- Densified kraft paper liner with white color for durability and consistent handling
- High initial adhesion with excellent shear holding power for reliable bonding
- Case quantity of 9 rolls providing substantial supply for industrial applications
Technical Specifications
| Specification |
Value |
| Product Name | 3M™ Adhesive Transfer Tape Extended Liner 920XL |
| Part Number | 920XL |
| 3M ID | 7000048384 |
| UPC | 00021200038877 |
| Adhesive Type | Acrylic (3M™ Adhesive 400) |
| Overall Width (Imperial) | 1 inch |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 1000 yards |
| Overall Length (Metric) | 914.4 meters |
| Total Tape Thickness without Liner (Imperial) | 1 mil |
| Total Tape Thickness without Liner (Metric) | 0.025 mm |
| Primary Liner Material | 42.5# Densified Kraft Paper |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 2.5 mil |
| Primary Liner Thickness (Metric) | 0.06 mm |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Maximum Operating Temperature (Fahrenheit) | 180°F |
| Smallest Saleable Unit | Roll |
| Units per Case | 9 Rolls |
| Brand | 3M™ |
| Industries | General Industrial, Medical, Packaging, Paper, Print, Retail |
| Liner Edge Design | Dry Edge and Finger Lift Edge |
| Intended Use | Industrial and Occupational Use Only |
