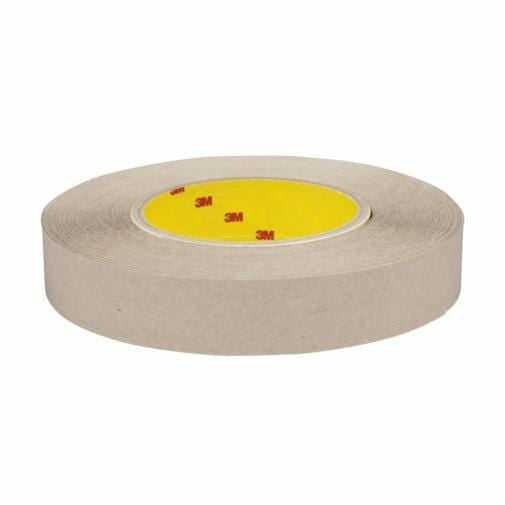

Industrial-grade 5 mil acrylic adhesive transfer tape on 60# glassine liner. Quick stick bonding with exceptional adhesion to high and low surface energy plastics. 27 in x 60.15 yd roll with superior temperature and chemical resistance.
3M™ Adhesive Transfer Tape 9627 is a premium industrial-grade adhesive transfer tape engineered for high-performance bonding applications. This clear transfer tape features 5 mil (0.13 mm) of 3M™ Quick Bonding Adhesive 360 applied to a 60# glassine paper liner, delivering exceptional adhesion properties and immediate bond strength. The tape is specifically designed to bond well to both high and low surface energy plastics, including hard-to-stick-to polypropylene and powder-coated paints, making it ideal for demanding industrial applications.
The 9627 transfer tape offers exceptional strength from thin bond lines, providing high bond strength on a variety of materials with minimal adhesive content. Its acrylic-based adhesive formulation provides quick stick adhesion, excellent peel adhesion, and superior performance on both polypropylene and steel substrates. The tape demonstrates outstanding resistance to humidity, UV exposure, water, and short-term temperatures up to 250°F (121°C), along with excellent chemical resistance to oil, mild acids, and alkalis. The 60# glassine paper liner provides dimensional stability and improved handling characteristics, making it exceptionally easy to die cut and laminate.
Recommended for plastic housing and component assembly applications such as bezel bonding and interior decorative trim attachment, this transfer tape meets Ford WSS-M11P62 and GM 9985281 automotive OEM specifications. Each roll measures 27 inches wide by 60.15 yards long, with 1 roll per case. This product is for industrial/occupational use only and is not intended for consumer sale or use.
Key Features
- Quick stick adhesion with immediate bond strength to high and low surface energy plastics
- 5 mil acrylic adhesive with 3M Quick Bonding Adhesive 360 for superior peel and shear adhesion
- 60# glassine paper liner for dimensional stability and excellent die cutting and laminating performance
- Exceptional strength from thin bond lines with minimal adhesive content for lightweight applications
- Outstanding resistance to humidity, UV, water, temperatures to 250°F and chemicals including oils and mild acids
Technical Specifications
| Specification |
Value |
| Product Number | 9627 |
| Adhesive Type | Acrylic - 3M Quick Bonding Adhesive 360 |
| Overall Width | 27 inches (685.8 mm) |
| Overall Length | 60.15 yards (55 meters) |
| Total Tape Thickness without Liner | 5 mil (0.13 mm) |
| Primary Liner | 60# Glassine Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness | 0.08 mm (3.2 mil) |
| Maximum Operating Temperature | 200°F (93°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Short-Term Temperature Resistance | Up to 250°F (121°C) |
| Units per Case | 1 Roll |
| Smallest Saleable Unit | Roll |
| UPC Code | 00051111919156 |
| 3M ID | 7000049547 |
| Automotive OEM Specification | Ford WSS-M11P62, GM 9985281 |
| Industries | Aerospace, Automotive, Electronics, General Industrial, Medical, Transportation, Woodworking |
| Chemical Resistance | Oil, mild acids, alkalis, and solvents |
| Moisture Resistance | Excellent |
| UV Resistance | Excellent |
Order 3M Adhesive Transfer Tape 9627 Clear 27 inch 60.15 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
