Premium 5 mil acrylic adhesive transfer tape with quick stick adhesion for high and low surface energy materials. Clear tape on 60# glassine liner, 1 inch x 60 yard rolls, case of 36. Ideal for plastic assembly, automotive, and electronics applications.

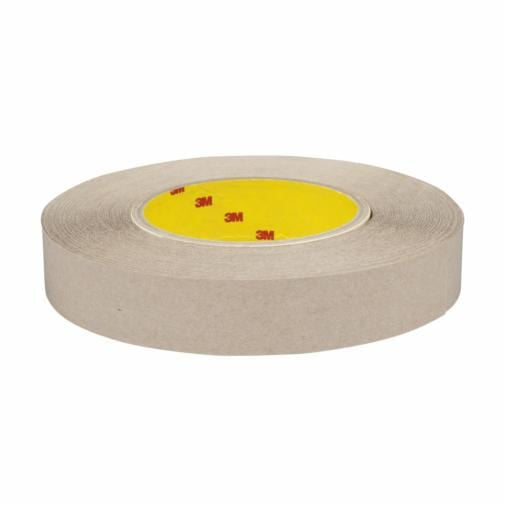

3M™ Adhesive Transfer Tape 9627 is a premium industrial-grade adhesive transfer tape designed for high-performance bonding applications. This clear tape features a natural 5 mil (0.13 mm) acrylic adhesive formulation with 3M™ Quick Bonding Adhesive 360, providing exceptional adhesion properties and immediate bond strength to both high and low surface energy materials. The tape is mounted on a 60# glassine paper liner with tan color, offering dimensional stability and improved handling for die cutting and laminating applications.
Engineered for versatile industrial use, the 3M™ Adhesive Transfer Tape 9627 delivers exceptional strength from thin bond lines, making it ideal for applications requiring minimal adhesive while maintaining superior bond strength. The tape bonds exceptionally well to hard-to-stick-to materials including polypropylene and powder-coated paints. With quick stick adhesion and immediate bond formation, this tape provides excellent conformability to irregular surfaces through its laminating adhesive format. The product is resistant to humidity, UV exposure, water, and short-term temperatures up to 250°F (121°C), as well as various chemicals including oil, mild acids, and alkalis.
This product is supplied as a case of 36 rolls, each measuring 1 inch in overall width and 60 yards in length. The tape meets automotive OEM specifications including Ford WSS-M11P62 and GM 9985281, making it suitable for automotive, aerospace, electronics, and general industrial applications. The operating temperature range spans from -40°F to 200°F (-40°C to 93°C), ensuring reliable performance across diverse environmental conditions. Recommended applications include plastic housing and component assembly with bezel bonding, and interior decorative trim attachment.
Key Features
- Quick stick adhesion with immediate bond formation to high and low surface energy materials
- 5 mil (0.13 mm) natural acrylic adhesive with 3M Quick Bonding Adhesive 360 technology
- Exceptional strength with minimal adhesive for thin, smooth bond lines
- Excellent conformability to irregular surfaces with laminating adhesive format
- Resistant to humidity, UV, water, chemicals, oils, mild acids, and alkalis
- Temperature resistant from -40°F to 200°F (-40°C to 93°C) with short-term tolerance to 250°F
- 60# glassine paper liner for dimensional stability and improved die cutting handling
- Bonds exceptionally well to polypropylene and powder-coated paints
- Meets Ford WSS-M11P62 and GM 9985281 automotive OEM specifications
- Supplied as 36 rolls per case for industrial and occupational use
Technical Specifications
| Specification |
Value |
| Product Number | 9627 |
| Part Number | 9627 |
| UPC Code | 00051111919866 |
| 3M ID | 7000115778 |
| Adhesive Type | Acrylic with 3M Quick Bonding Adhesive 360 |
| Overall Width (Imperial) | 1 inch |
| Overall Width (Metric) | 25.4 mm |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 54.86 meters |
| Tape Thickness without Liner (Imperial) | 5 mil |
| Tape Thickness without Liner (Metric) | 0.13 mm |
| Primary Liner Material | 60# Glassine Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Primary Liner Thickness (Imperial) | 3.2 mil |
| Smallest Saleable Unit | Roll |
| Units per Case | 36 rolls |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 200°F |
| Maximum Operating Temperature (Celsius) | 93°C |
| Short-term Temperature Tolerance | Up to 250°F (121°C) |
| Ford OEM Specification | WSS-M11P62 |
| GM OEM Specification | 9985281 |
| Brand | 3M |
| Chemical Resistance | Oil, mild acids, alkalis, humidity, UV, and water resistant |
| Primary Applications | Plastic housing assembly, bezel bonding, interior decorative trim attachment |
| Industries | Aerospace, Automotive, Electronics, General Industrial, Medical, Transportation, Woodworking |
| Use Classification | Industrial/Occupational use only - Not for consumer sale or use |
