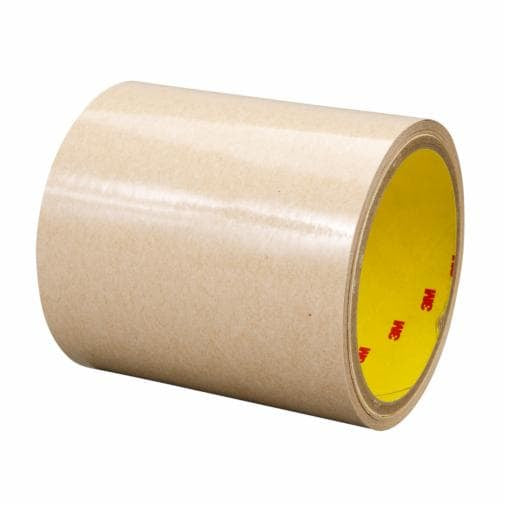

| Product Name | 3M™ Adhesive Transfer Tape 9626 |
| Part Number | 9626 |
| UPC Code | 00051111918975 |
| Adhesive Type | Acrylic - 3M™ Quick Bonding Adhesive 360 |
| Overall Width (Imperial) | 54 inches |
| Overall Width (Metric) | 1,371.6 mm |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 55 meters |
| Total Tape Thickness without Liner (Imperial) | 2 mil |
| Total Tape Thickness without Liner (Metric) | 0.05 mm (0.06 mm) |
| Primary Liner Material | 60# Glassine Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 3.2 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Smallest Saleable Unit | Roll |
| Units per Case | 1 Roll |
| Maximum Operating Temperature (Fahrenheit) | 200°F (Short-term up to 250°F) |
| Maximum Operating Temperature (Celsius) | 93°C (Short-term up to 121°C) |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| OEM Specification | Ford WSS-M11P62 |
| Industries Served | Aerospace, Automotive, Electronics, General Industrial, Medical, Transportation, Woodworking |
| Application Type | Plastic housing assembly, bezel bonding, interior decorative trim attachment |
| Chemical Resistance | Oils, mild acids, alkalis, and solvents |
| Humidity Resistance | Excellent |
| UV Resistance | Excellent |
| Water Resistance | Excellent |
| Surface Energy Compatibility | High and low surface energy plastics |
| Substrate Compatibility | Polypropylene, powder-coated paints, metals, composites |
| Use Classification | Industrial/Occupational Use Only |
