Industrial-grade clear adhesive transfer tape with 2 mil thickness, 54 in x 120 yd dimensions, featuring quick bonding adhesive 360 for immediate strong adhesion to high and low surface energy materials.

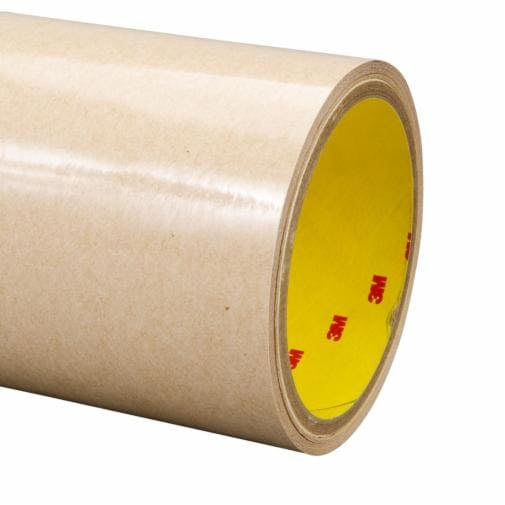

3M™ Adhesive Transfer Tape 9626 is a premium industrial-grade adhesive transfer tape engineered for exceptional bonding performance across diverse materials and applications. This clear, 2 mil (0.06 mm) thick tape features 3M™ Quick Bonding Adhesive 360 on a 60# glassine paper liner, delivering immediate bond strength with quick stick adhesion properties. The tape measures 54 inches wide by 120 yards long, making it ideal for large-scale manufacturing and assembly operations.
Designed with precision engineering, the 9626 tape provides exceptional strength from thin bond lines, offering high bond strength on a variety of challenging materials including hard-to-stick-to polypropylene and powder-coated paints. The natural adhesive formulation delivers minimal oozing and low odor characteristics, making it suitable for sensitive manufacturing environments. With a maximum operating temperature of 200°F (93°C) and minimum of -40°F (-40°C), this tape maintains performance across demanding temperature ranges.
The tape exhibits excellent resistance to humidity, UV exposure, water, and various chemicals including oil, mild acids, and alkalis. The 60# glassine paper liner provides superior dimensional stability and improved handling characteristics, facilitating easy die cutting and laminating applications. Recommended for plastic housing assembly, component bonding, bezel attachment, and interior decorative trim applications in automotive and consumer electronics manufacturing.
Key Features
- Quick stick adhesion with immediate bond strength for fast assembly operations
- Exceptional adhesion to high and low surface energy plastics including polypropylene
- 2 mil thin bond line delivers maximum strength with minimal adhesive material
- 60# glassine paper liner provides dimensional stability and superior die-cutting performance
- Resistant to humidity, UV, water, and chemicals including oil, acids, and alkalis
- Temperature resistant from -40°F to 200°F for demanding industrial applications
- Low odor and minimal oozing formulation suitable for sensitive manufacturing environments
- Excellent conformability to irregular and contoured surfaces
Technical Specifications
| Specification |
Value |
| Product Number | 3M 9626 |
| Part Number | 9626 |
| 3M ID | 7010535658 |
| Tape Thickness (without Liner) | 2 mil (0.05 mm) |
| Overall Width | 54 inches (1,371.6 mm) |
| Overall Length | 120 yards (109.73 m) |
| Adhesive Type | 3M Quick Bonding Adhesive 360 |
| Primary Liner | 60# Glassine Paper |
| Liner Color | Tan |
| Liner Thickness | 0.08 mm (3.2 mil) |
| Maximum Operating Temperature | 200°F (93°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Automotive OEM Specification | Ford WSS-M11P62 |
| Industries | Specialty Vehicles, Woodworking, Automotive Manufacturing |
| Smallest Saleable Unit | Roll |
| Chemical Resistance | Oil, mild acids, alkalis, humidity, UV, water |
| Adhesive Format | Laminating adhesive transfer tape |
| Brand | 3M™ |
| Application Type | Industrial/Occupational Use Only |
| Conformability | Good conformability to irregular surfaces |
Order 3M Adhesive Transfer Tape 9626 Clear 54 inch Roll at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
