Industrial-grade 2 mil clear adhesive transfer tape with 3M Quick Bonding Adhesive 360 on 60# glassine liner. Provides immediate strong adhesion to high and low surface energy materials with excellent chemical and temperature resistance.

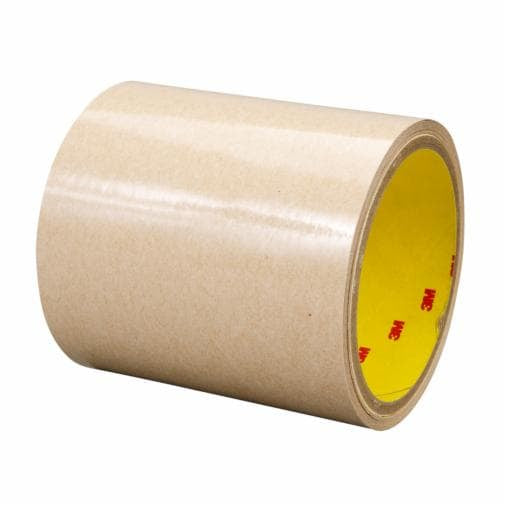

3M™ Adhesive Transfer Tape 9626 is a premium adhesive transfer tape engineered for industrial applications requiring exceptional bonding strength on both high and low surface energy materials. This 2 mil (0.05 mm) clear tape features 3M™ Quick Bonding Adhesive 360 pre-applied to a 60# glassine paper liner, providing immediate bond strength with minimal adhesive. The tape delivers quick stick adhesion with exceptional conformability to irregular surfaces, making it ideal for plastic housing assembly, component bonding, and decorative trim attachment. Engineered for durability, it offers excellent resistance to humidity, UV exposure, water, and chemicals including oils, mild acids, and alkalis, with short-term temperature resistance up to 250°F (121°C).
The 360 Adhesive advantage provides high bond strength with low odor and minimal oozing, delivering more bonding power with less material. This transfer tape excels at bonding hard-to-stick-to materials such as polypropylene and powder-coated surfaces, while maintaining dimensional stability through its 60# glassine paper liner. The laminating adhesive format ensures excellent conformability to complex geometries and irregular surfaces, while the thin 2 mil bond line provides a smooth, professional finish without excess adhesive residue.
Designed specifically for industrial and occupational use, this product meets Ford WSS-M11P62 OEM specifications and is suitable for aerospace, automotive, electronics, medical device, and general industrial applications. The tape's versatility extends to converter solutions, specialty vehicles, transportation, and woodworking industries, making it a trusted choice for manufacturers requiring reliable, consistent adhesion performance across diverse substrate combinations.
Key Features
- Quick stick adhesion with immediate bond strength on high and low surface energy materials
- 3M Quick Bonding Adhesive 360 provides exceptional strength with minimal adhesive and low odor
- 60# glassine paper liner ensures dimensional stability and improved handling in die cutting and laminating
- Excellent conformability to irregular surfaces with thin 2 mil bond line for smooth application
- Superior chemical and temperature resistance including humidity, UV, water, oils, mild acids, and alkalis up to 250°F
Technical Specifications
| Specification |
Value |
| Part Number | 9626 |
| Product Type | Adhesive Transfer Tape |
| Total Tape Thickness without Liner (Metric) | 0.05 mm |
| Total Tape Thickness without Liner (Imperial) | 2 mil |
| Adhesive Type | Acrylic - 3M Quick Bonding Adhesive 360 |
| Primary Liner | 60# Glassine Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Primary Liner Thickness (Imperial) | 3.2 mil |
| Maximum Operating Temperature (Celsius) | 93 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 200 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Short-term Temperature Resistance | Up to 250°F (121°C) |
| Smallest Saleable Unit | Roll |
| Automotive OEM Specification | Ford WSS-M11P62 |
| Chemical Resistance | Oil, mild acids, alkalis, and solvents |
| Moisture Resistance | Good solvent and moisture resistance |
| Application Format | Laminating adhesive with conformability to irregular surfaces |
| Industries | Aerospace, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation, Woodworking |
