High-performance 5 mil acrylic adhesive transfer tape with 78 lb kraft paper liner for industrial bonding of high and low surface energy materials, offering excellent temperature and chemical resistance up to 450°F.

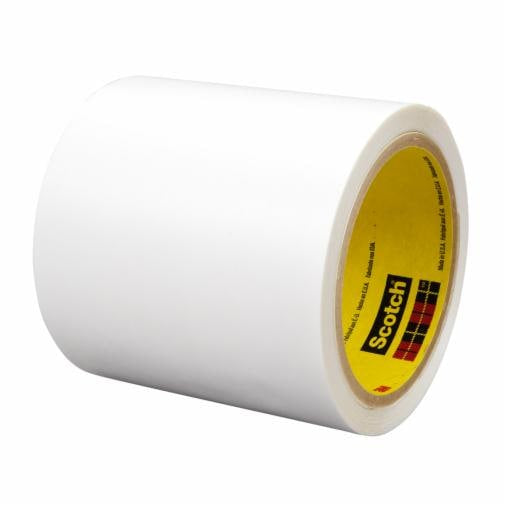

3M™ Adhesive Transfer Tape 9485EK is a premium high-performance transfer tape designed for demanding industrial bonding applications. This 5.0 mil (.127 mm) thick tape features 3M's High Performance Acrylic Adhesive 350, mounted on a white 78 lb. extensible polycoated kraft paper liner. The tape excels at bonding both high and low surface energy materials, including powder coated paints, making it ideal for applications requiring exceptional adhesion strength and durability.
The adhesive formulation provides excellent chemical resistance to gasoline, oil, sodium chloride, mild acids, and alkaloids, combined with superior moisture and solvent resistance. The fiber-reinforced adhesive ensures roll stability in narrow width applications while resisting oozing, and maintains exceptional shear strength even at elevated temperatures. This transfer tape is engineered for short-term temperature exposure up to 450°F (232°C) and long-term exposure up to 300°F (149°C), making it suitable for high-temperature bonding applications across multiple industries.
The 78 lb. extensible kraft paper liner provides additional strength and is specifically designed for narrow width automated dispensing applications, offering ease of processing and converting. With low odor characteristics, this tape creates an improved working environment while delivering industrial-grade performance. Recommended for bonding foams to low surface energy materials, gasketing, labeling, and joining materials with rougher surfaces.
Key Features
- 5.0 mil thick tape with high performance acrylic adhesive 350 for superior bonding strength
- 78 lb extensible kraft paper liner designed for narrow width automated dispensing applications
- Excellent chemical resistance to gasoline, oil, salt, acids, and alkaloids with superior moisture resistance
- Fiber-reinforced adhesive ensures roll stability and prevents oozing in narrow width applications
- High temperature capability: 450°F short-term and 300°F long-term exposure with exceptional shear strength
- Low odor formulation for improved working environment and occupational safety
- Ideal for bonding high and low surface energy materials including powder coated paints
- Superior peel and shear strength maintained even at elevated temperatures
Technical Specifications
| Specification |
Value |
| Product Name | 3M Adhesive Transfer Tape 9485EK |
| Part Number | 9485EK |
| 3M ID | 7100013116 |
| Adhesive Type | High Performance Acrylic Adhesive 350 |
| Tape Thickness (without liner) | 5.0 mil (0.127 mm) |
| Primary Liner Material | 78 lb Extensible Polycoated Kraft Paper |
| Liner Color | White |
| Liner Thickness | 0.15 mm (6 mil) |
| Maximum Operating Temperature | 450°F (232°C) short-term; 300°F (149°C) long-term |
| Minimum Operating Temperature | -40°F (-40°C) |
| Smallest Saleable Unit | Roll |
| Brand | 3M™ |
| Chemical Resistance | Gasoline, oil, sodium chloride, mild acids, alkaloids, solvents |
| Key Properties | Fiber-reinforced, low odor, excellent shear and peel strength |
| Recommended Applications | Bonding high/low surface energy materials, automated dispensing, foam bonding, gasketing, labeling |
