Market-proven 5 mil acrylic adhesive transfer tape with 300LSE adhesive for bonding dissimilar materials including metals, plastics, and painted surfaces. Excellent chemical and moisture resistance with temperature performance from -40°F to 300°F. Solventless manufacturing. For industrial use only.

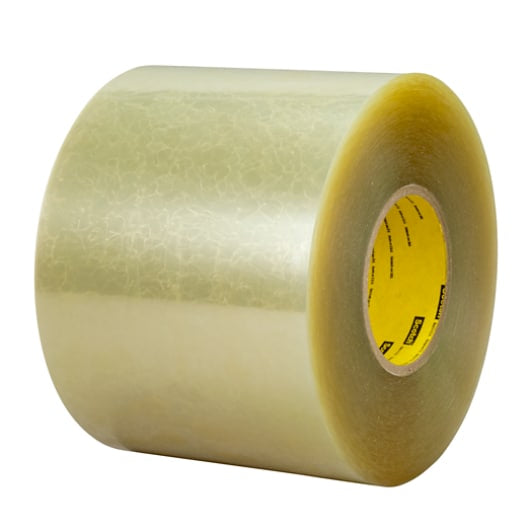

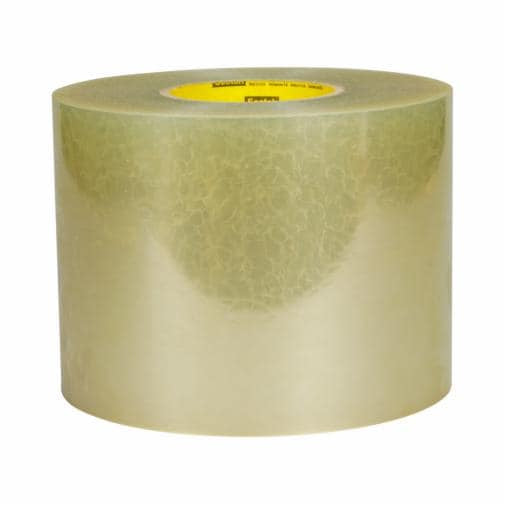

3M™ Adhesive Transfer Tape 9472FL is a versatile, market-proven 5 mil (0.13 mm) transfer tape on a release liner featuring 3M™ 300LSE acrylic adhesive. This industrial-grade bonding tape has a long and proven history of reliably bonding a wide variety of similar and dissimilar materials such as metals, most plastics, glass, papers, and painted surfaces. The tape delivers excellent bond to low surface energy substrates including powder coatings and plastics such as polypropylene (PP), while providing high adhesion to metals and high surface energy materials, making it suitable for bonding dissimilar substrates.
Designed for applications requiring premium performance and a thicker profile than 2 mil tapes, the 9472FL offers good chemical, humidity, and moisture resistance with performance across a wide temperature range from -40°F/-40°C to 300°F/148°C. The bond strength increases as a function of time and temperature with very high initial adhesion. This tape is supplied on a film liner ideal for rotary die-cutting applications and is manufactured using a solventless manufacturing process. The product meets UL 969 standards and is part of the 3M™ High Strength Acrylic Adhesive 300LSE family.
Ideal for general purpose attachment and assemblies across diverse industries including consumer electronics, industrial electronics, automotive, appliances, and medical equipment fabrication. The tape provides excellent holding power and anti-lifting properties, making it the go-to solution for bonding rough substrates such as textured plastics, plastic to metal bonding, and various industrial applications. This product is for industrial/occupational use only and is not intended for consumer sale or use.
Key Features
- Excellent bond to low surface energy substrates including powder coatings and polypropylene plastics
- High adhesion to metals and high surface energy materials for bonding dissimilar substrates
- Excellent holding power and anti-lifting properties for secure, long-lasting bonds
- Good resistance to industrial chemicals, consumer chemicals, moisture and humidity
- Wide operating temperature range from -40°F/-40°C to 300°F/148°C with increasing bond strength over time
- Solventless manufacturing process for environmentally conscious applications
- Very high initial adhesion with film liner ideal for rotary die-cutting applications
- Meets UL 969 standards for industrial and occupational use
- Versatile solution for diverse industries including automotive, electronics, appliances, and medical devices
- Part of 3M High Strength Acrylic Adhesive 300LSE family for premium performance
Technical Specifications
| Specification |
Value |
| Part Number | 9472FL |
| 3M Product Number | 9472FL |
| 3M ID | 7010313255 |
| UPC | 00051128994870 |
| Adhesive Type | Acrylic (3M 300LSE High Strength Acrylic) |
| Overall Width (Imperial) | 11.9 in |
| Overall Width (Metric) | 302.26 mm |
| Overall Length (Imperial) | 480 yd |
| Overall Length (Metric) | 438.912 m |
| Total Tape Thickness without Liner (Imperial) | 5.2 mil |
| Total Tape Thickness without Liner (Metric) | 0.13 mm |
| Primary Liner Material | PET (Polyethylene Terephthalate) |
| Primary Liner Color | Transparent |
| Primary Liner Thickness (Metric) | 0.05 mm |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Maximum Operating Temperature (Fahrenheit) | 300°F |
| Maximum Operating Temperature (Celsius) | 149°C |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| Brand | 3M™ |
| Smallest Saleable Unit | Roll |
| Quantity per Case | 1 Roll/Case |
| Splice Configuration | Splice Free |
| Standards Compliance | UL 969 (Reference File PGGU2.MH26206) |
| Manufacturing Process | Solventless |
| Recommended Applications | Bonding rough substrates, plastic to metal bonding, consumer electronics, industrial electronics, automotive assemblies, appliance components, medical device fabrication, general industrial applications |
Order 3M Adhesive Transfer Tape 9472FL Clear 11.9 in x 480 yd at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
