Premium 5.0 mil acrylic adhesive transfer tape with excellent humidity, water, solvent, and UV resistance. Bonds superior to textured surfaces and LSE plastics with maximum operating temperature of 250°F. Includes 2 rolls per case, 6 inches x 180 yards each.

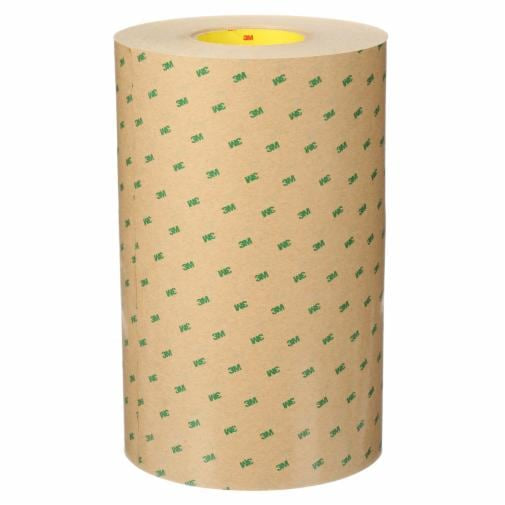

3M™ Adhesive Transfer Tape 9472 is a premium industrial adhesive transfer tape designed for superior bonding performance on a wide variety of textured and rough surfaces. This high-performance tape features a 5.0 mil thick acrylic adhesive that provides excellent initial adhesion and outstanding humidity, water, solvent, chemical, and UV resistance. The tape is engineered with a 60# densified kraft (DK) liner that resists curling and wrinkling in high humidity environments, ensuring reliable performance in demanding industrial applications.
The 3M Adhesive Transfer Tape 9472 is ideal for applications requiring strong, durable bonds on challenging substrates including low surface energy (LSE) plastics, foams, textured surfaces, and coated materials. With a maximum operating temperature of 250°F (121°C) and a minimum of -40°F (-40°C), this tape maintains consistent bonding strength across a wide temperature range. The densified kraft liner provides added strength and resists breakage during rotary die-cutting, high-speed processing, and automatic dispensing operations, enabling time-saving one-piece liner removal.
This product comes in a convenient 2 roll per case configuration, with each roll measuring 6 inches in width and 180 yards in length. The tape is specifically engineered for industrial and occupational use in aerospace, appliance, automotive, construction, electronics, food and beverage, general industrial, military and government, packaging, signage, and transportation industries. It meets automotive OEM specifications including FCA MS-CC240, Ford WSS-M11P62, and GM 9985281.
Key Features
- Excellent humidity, water, solvent, chemical and UV resistance for superior durability
- 5.0 mil acrylic adhesive bonds exceptionally well to textured and rough surfaces
- High temperature resistance up to 250°F (121°C) with low temperature capability to -40°F
- 60# Densified Kraft liner resists curling and wrinkling in high humidity environments
- Very high initial adhesion for reliable bonding on LSE plastics, foams, and coated surfaces
- Densified kraft liner enables easy one-piece removal even during rotary die-cutting and automatic dispensing
- Meets automotive OEM specifications including FCA, Ford, and GM standards
- Suitable for aerospace, appliance, automotive, construction, electronics and industrial applications
Technical Specifications
| Specification |
Value |
| Part Number | 9472 |
| Product Code | 3M Product Number 9472 |
| 3M ID | 7000048625 |
| UPC Code | 00021200255779 |
| Adhesive Type | Acrylic (3M Adhesive 300) |
| Overall Width | 6 inches (152.4 mm) |
| Overall Length | 180 yards (164.59 meters) |
| Adhesive Thickness | 5.0 mil (0.127 mm) / 5.12 mil (0.05 mm without liner) |
| Primary Liner | 60# Densified Kraft Paper (Tan color) |
| Liner Thickness | 3.5 mil (0.09 mm) |
| Maximum Operating Temperature | 250°F (121°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Indoor/Outdoor Use | Indoor/Outdoor |
| Shelf Life | 18 months |
| Units per Case | 2 rolls |
| Smallest Saleable Unit | Roll |
| Automotive OEM Specifications | FCA MS-CC240, Ford WSS-M11P62, GM 9985281 |
| Brand | 3M™ |
| Industries | Aerospace, Appliance, Automotive, Construction, Converter Solutions, Craft, Electronics, Food and Beverage, General Industrial, Military & Government, Packaging, Paper, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation |
| Recommended Applications | Graphic nameplates, overlays, metal nameplate bonding, rating plates, foam gasketing, web splicing |
Order 3M Adhesive Transfer Tape 9472 Clear 6 Inch 180 Yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
