Industrial-grade 5 mil acrylic adhesive transfer tape with exceptional bonding to textured surfaces. Features 60# kraft liner, temperature range -40°F to 250°F, and superior humidity/chemical resistance. Ideal for nameplate attachment, graphic overlays, and foam gasketing applications.

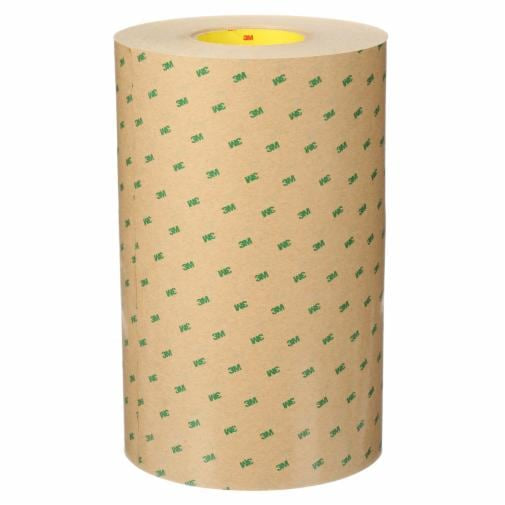

3M™ Adhesive Transfer Tape 9472 is a premium industrial-grade transfer tape engineered for exceptional adhesion to a wide variety of textured surfaces including low surface energy plastics, foams, and coated materials. This 5.0 mil acrylic adhesive formulation delivers excellent humidity, water, solvent, chemical, and UV resistance, making it ideal for demanding industrial applications. The tape features a 60# densified kraft paper liner that resists curling and wrinkling in high-humidity environments, ensuring clean, one-piece liner removal even during rotary die-cutting and high-speed automated processing.
Designed for general-purpose surface bonding applications, this transfer tape offers very high initial adhesion and maintains consistent performance across a wide temperature range from -40°F to 250°F (-40°C to 121°C). The 3M Adhesive 300 formulation provides superior bonding to both high and low surface energy substrates, making it exceptionally versatile for nameplate attachment, graphic overlays, foam gasketing, and various industrial bonding tasks. Each roll measures 48 inches wide by 60 yards long with a total thickness of 5.12 mil without the liner.
This product meets automotive OEM specifications including FCA MS-CC240, Ford WSS-M11P62, and GM 9985281, confirming its suitability for automotive and aerospace applications. The tape is engineered for industrial and occupational use only, providing reliable performance in manufacturing, assembly, and conversion operations. With an 18-month shelf life and 1 roll per case packaging, this adhesive transfer tape is ready for immediate integration into production workflows requiring dependable surface bonding solutions.
Key Features
- 5.0 mil acrylic adhesive bonds exceptionally well to textured and rough surfaces including LSE plastics and foams
- Excellent humidity, water, solvent, chemical and UV resistance for demanding industrial environments
- High temperature resistance up to 250°F (121°C) with minimum operating temperature of -40°F (-40°C)
- 60# densified kraft paper liner resists curling and wrinkling, enabling clean one-piece removal and die-cutting operations
- Very high initial adhesion providing consistent, reliable bonding across diverse substrate materials and applications
Technical Specifications
| Specification |
Value |
| Product Number | 9472 |
| Overall Width (Imperial) | 48 inches |
| Overall Width (Metric) | 1,219.2 mm |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 54.86 meters |
| Total Tape Thickness without Liner (Imperial) | 5.12 mil |
| Total Tape Thickness without Liner (Metric) | 0.05 mm |
| Adhesive Type | Acrylic - 3M Adhesive 300 |
| Primary Liner | 60# Densified Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 3.5 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Maximum Operating Temperature (Fahrenheit) | 250°F |
| Maximum Operating Temperature (Celsius) | 121°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Indoor/Outdoor | Indoor/Outdoor |
| Shelf Life | 18 months |
| Units per Case | 1 Roll |
| Smallest Saleable Unit | Roll |
| Brand | 3M™ |
| UPC | 00051111980330 |
| 3M ID | 7010295435 |
| Automotive OEM Specifications | FCA MS-CC240, Ford WSS-M11P62, GM 9985281 |
| Application Type | Bonding, Mounting, Transfer Tape |
