Premium 5mil acrylic adhesive transfer tape with exceptional bonding to textured surfaces, excellent chemical and UV resistance, and reliable performance from -40°F to 250°F for industrial nameplate and graphic overlay applications.

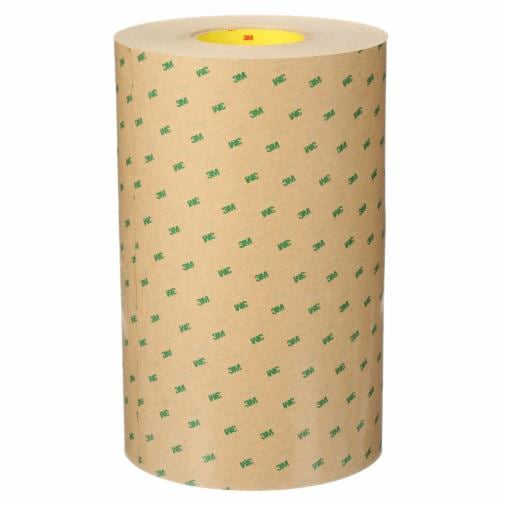

3M™ Adhesive Transfer Tape 9472 is a premium-grade pressure-sensitive transfer tape engineered for superior adhesion to textured and rough surfaces. This industrial-grade tape features a 5.0 mil thick acrylic adhesive formulation that delivers exceptional bonding performance across a wide variety of substrates, including low surface energy (LSE) plastics, foam, fabrics, and coated papers. The tape maintains excellent humidity, water, solvent, chemical, and UV resistance, making it ideal for demanding industrial applications.
The 60# densified kraft (DK) liner provides added strength and resists curling or wrinkling even in high humidity environments, ensuring reliable one-piece liner removal during die-cutting, high-speed processing, and automatic dispensing operations. With a maximum operating temperature of 250°F (121°C) and minimum operating temperature of -40°F (-40°C), this tape offers consistent performance across extreme temperature ranges. The tape is specifically designed for general-purpose transfer applications including graphic nameplate and overlay attachment to metal and low surface energy plastic surfaces.
This product is manufactured to meet automotive OEM specifications including FCA MS-CC240, Ford WSS-M11P62, and GM 9985281 standards. With an 18-month shelf life and available in a convenient 60-yard roll format, the 3M Adhesive Transfer Tape 9472 represents a reliable solution for industrial bonding, nameplating, and graphic overlay applications. The product is intended for industrial and occupational use only and must be used in compliance with applicable health and safety regulations.
Key Features
- 5.0 mil acrylic adhesive bonds exceptionally well to textured and rough surfaces including LSE plastics, foam, fabrics, and coated papers
- Excellent humidity, water, solvent, chemical, and UV resistance for demanding industrial environments
- 60# densified kraft liner resists curling and wrinkling in high humidity with one-piece removal capability
- High temperature resistance up to 250°F (121°C) with minimum operating temperature of -40°F (-40°C)
- Meets automotive OEM specifications FCA MS-CC240, Ford WSS-M11P62, and GM 9985281
- Ideal for die-cutting, high-speed processing, and automatic dispensing applications
- 18-month shelf life for extended product storage and inventory management
Technical Specifications
| Specification |
Value |
| Product Number | 9472 |
| 3M ID | 7010535799 |
| Overall Width (Imperial) | 48 in |
| Overall Width (Metric) | 1219.2 mm |
| Overall Length (Imperial) | 60 yd |
| Overall Length (Metric) | 54.86 m |
| Total Tape Thickness without Liner (Imperial) | 5.12 mil |
| Total Tape Thickness without Liner (Metric) | 0.05 mm |
| Adhesive Type | 5.0 mil Pressure Sensitive Acrylic (Adhesive 300) |
| Primary Liner Material | 60# Densified Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 3.5 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Maximum Operating Temperature (Fahrenheit) | 250°F |
| Maximum Operating Temperature (Celsius) | 121°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Shelf Life | 18 Months |
| Brand | 3M™ |
| Indoor/Outdoor | Indoor/Outdoor |
| Automotive OEM Specifications | FCA MS-CC240, Ford WSS-M11P62, GM 9985281 |
| Industries | Signage, Specialty Vehicles |
| Smallest Saleable Unit | Roll |
| Product Category | Adhesive Transfer Tapes |
| Use Type | Industrial/Occupational Use Only |
