Premium 5 mil acrylic adhesive transfer tape with superior bonding to textured surfaces, high temperature resistance to 250°F, and excellent humidity and chemical resistance for industrial applications.

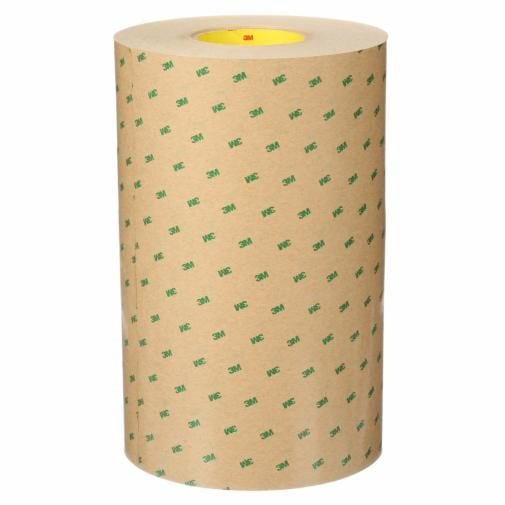

3M™ Adhesive Transfer Tape 9472 is a premium pressure-sensitive adhesive transfer tape engineered for superior bonding to a wide variety of textured surfaces including low surface energy (LSE) plastics, foams, and coated papers. This industrial-grade tape features a 5.0 mil thick acrylic adhesive formulation that delivers excellent humidity, water, solvent, chemical, and UV resistance, making it ideal for demanding industrial applications. The tape is backed with a 60# densified kraft (DK) liner that resists curling and wrinkling even in high humidity environments, ensuring reliable performance in one-piece liner removal operations.
The 3M Adhesive Transfer Tape 9472 is specifically designed for general-purpose transfer tape applications where strong initial adhesion is critical. With dimensions of 48 inches width by 180 yards length and a total thickness of 5.12 mil without liner, this tape offers high temperature resistance up to 250°F (121°C) and minimum operating temperature down to -40°F (-40°C). The densified kraft liner provides added strength and resists breakage during rotary die-cutting, high-speed processing, and automatic dispensing operations.
This versatile adhesive transfer tape is commonly used for graphic nameplates and overlays on metal and low surface energy plastic surfaces, bonding metal nameplates and rating plates, and numerous other industrial bonding applications. It represents the thicker version of the 3M™ Adhesive Transfer Tape 9471, providing enhanced performance for more demanding applications. Manufactured by 3M's Industrial Adhesives and Tapes Division, this product meets automotive OEM specifications including FCA MS-CC240, Ford WSS-M11P62, and GM 9985281.
Key Features
- Excellent humidity, water, solvent, chemical and UV resistance for long-lasting performance
- 5.0 mil acrylic adhesive bonds exceptionally well to textured and rough surfaces including LSE plastics and foams
- High temperature resistance up to 250°F (121°C) with operating range from -40°F to 250°F
- 60# densified kraft liner resists curling and wrinkling in high humidity and enables one-piece removal
- Very high initial adhesion for reliable bonding across wide variety of substrates and applications
- Suitable for rotary die-cutting, high-speed processing and automatic dispensing operations
- Meets automotive OEM specifications including FCA, Ford, and GM standards
- Ideal for graphic nameplates, overlays, nameplate bonding and industrial transfer applications
Technical Specifications
| Specification |
Value |
| Product Type | Adhesive Transfer Tape |
| Adhesive Type | Acrylic (Adhesive 300) |
| Overall Width | 48 inches (1,219.2 mm) |
| Overall Length | 180 yards (164.59 meters) |
| Total Tape Thickness without Liner | 5.12 mil (0.05 mm) |
| Primary Liner | 60# Densified Kraft Paper (Tan color) |
| Primary Liner Thickness | 3.5 mils (0.09 mm) |
| Maximum Operating Temperature | 250°F (121°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Indoor/Outdoor | Indoor/Outdoor |
| Shelf Life | 18 Months |
| Units per Case | 1 Roll |
| Smallest Saleable Unit | Roll |
| Part Number | 9472 |
| 3M ID | 7000123473 |
| UPC | 00021200889653 |
| Automotive OEM Specification | FCA MS-CC240, Ford WSS-M11P62, GM 9985281 |
| Industries Served | Aerospace, Appliance, Automotive, Construction, Electronics, Food and Beverage, General Industrial, Military & Government, Packaging, Signage, Transportation |
Order 3M Adhesive Transfer Tape 9472 Clear 48in x 180yd 5mil at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
