Industrial-grade 5.0 mil acrylic adhesive transfer tape with exceptional bonding to textured surfaces, 24 inch width, 60 yard length, excellent temperature and chemical resistance up to 250°F

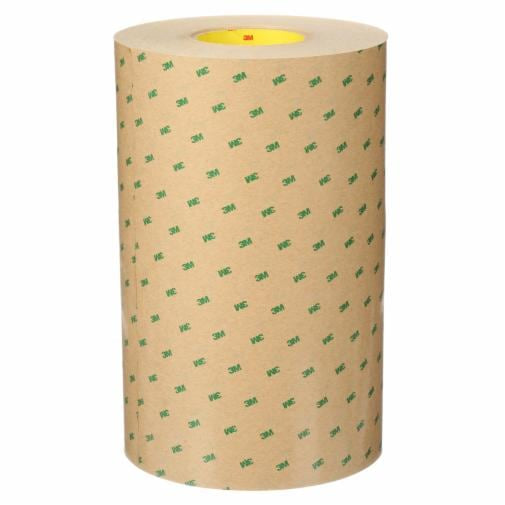

3M™ Adhesive Transfer Tape 9472 is a premium industrial-grade transfer tape featuring a 5.0 mil thick acrylic adhesive formulation designed for exceptional bonding to textured and rough surfaces. This clear transfer tape measures 24 inches in width by 60 yards in length and comes with a 60# densified kraft paper liner that resists curling and wrinkling even in high humidity environments. The tape delivers excellent humidity, water, solvent, chemical and UV resistance, making it ideal for a wide variety of industrial applications including graphic nameplates, overlays, metal nameplate bonding, and general purpose surface bonding.
Engineered for superior performance in demanding industrial environments, the 3M Adhesive Transfer Tape 9472 features very high initial adhesion and maintains consistent bonding strength across a wide temperature range from -40°F to 250°F (-40°C to 121°C). The densified kraft liner provides added strength and resists breakage during rotary die-cutting, high-speed processing, and automatic dispensing operations. This tape is specifically formulated to bond exceptionally well to low surface energy (LSE) plastics, foams, fabrics, coated papers, and other challenging substrates where conventional adhesives fail.
The 3M Adhesive 300 formulation used in this transfer tape provides consistently strong bonds and excellent environmental resistance. With an 18-month shelf life and single roll per case packaging, this product is ideal for converters and manufacturers requiring reliable, high-performance adhesive solutions. Part number 9472, UPC 00021200688010, this tape meets automotive OEM specifications including FCA MS-CC240, Ford WSS-M11P62, and GM 9985281, making it suitable for aerospace, appliance, automotive, construction, electronics, food and beverage, and general industrial applications.
Key Features
- 5.0 mil thick acrylic adhesive bonds exceptionally well to textured and rough surfaces
- Excellent humidity, water, solvent, chemical and UV resistance for long-lasting performance
- High temperature resistance up to 250°F (121°C) with minimum operating temperature of -40°F
- 60# densified kraft paper liner resists curling, wrinkling and breakage in high humidity environments
- Very high initial adhesion with consistent bonding strength across wide temperature range
- Compatible with low surface energy plastics, foams, fabrics and coated papers
- Suitable for rotary die-cutting, high-speed processing and automatic dispensing operations
- 18-month shelf life for extended storage and inventory management
- Meets automotive OEM specifications including FCA, Ford and GM standards
- Ideal for graphic nameplates, overlays, nameplate bonding and general purpose applications
Technical Specifications
| Specification |
Value |
| Product Number | 3M™ Adhesive Transfer Tape 9472 |
| Part Number | 9472 |
| 3M ID | 7010372447 |
| UPC Code | 00021200688010 |
| Adhesive Type | Acrylic - 3M Adhesive 300 |
| Overall Width (Imperial) | 24 inches |
| Overall Width (Metric) | 609.6 mm |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 54.86 meters |
| Adhesive Thickness without Liner (Imperial) | 5.12 mil |
| Adhesive Thickness without Liner (Metric) | 0.05 mm |
| Primary Liner Material | 60# Densified Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 3.5 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Maximum Operating Temperature (Fahrenheit) | 250°F |
| Maximum Operating Temperature (Celsius) | 121°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Shelf Life | 18 months |
| Smallest Saleable Unit | Roll |
| Units per Case | 1 roll |
| Indoor/Outdoor Use | Indoor/Outdoor |
| Automotive OEM Specifications | FCA MS-CC240, Ford WSS-M11P62, GM 9985281 |
| Intended Use | Industrial/Occupational use only - Not for consumer sale |
| Recommended Applications | Graphic nameplates, overlays on metal and LSE plastics, metal nameplate bonding, rating plates, foam gasketing, web splicing, signs, posters, banners |
| Compatible Substrates | Metal, low surface energy plastics, foam, fabrics, coated papers, textured surfaces |
| Key Benefits | Excellent humidity, water, solvent, chemical and UV resistance; very high initial adhesion; consistent bonding across temperature range |
| Industries | Aerospace, Appliance, Automotive, Construction, Converter Solutions, Electronics, Food and Beverage, General Industrial, Military & Government, Packaging, Point of Purchase, Signage, Transportation |
Order 3M Adhesive Transfer Tape 9472 Clear 24 inch 60 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
