Industrial-grade 5.0 mil acrylic transfer tape with excellent adhesion to textured surfaces, humidity and UV resistance, ideal for nameplates, overlays, and specialty vehicle bonding applications.

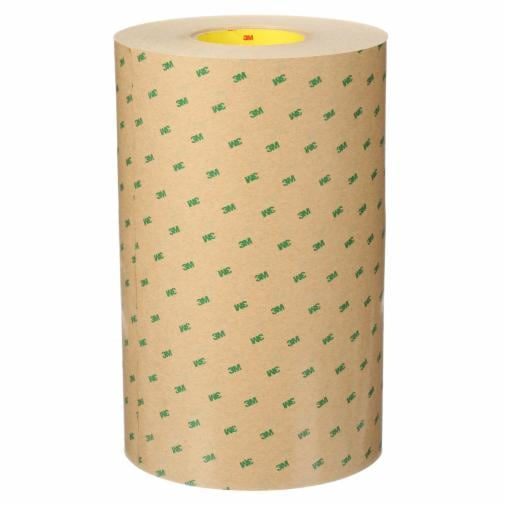

3M™ Adhesive Transfer Tape 9472 is a premium industrial-grade transfer tape engineered for exceptional adhesion to a wide variety of textured and rough surfaces including low surface energy plastics, foams, fabrics, and coated papers. This clear transfer tape features a 5.0 mil thick acrylic adhesive formulation that delivers very high initial adhesion and excellent performance across demanding applications. The tape is backed with a 60# densified kraft paper liner that resists curling and wrinkling even in high humidity environments, ensuring reliable one-piece liner removal for both manual and automated dispensing operations.
Designed for industrial and occupational use, this transfer tape excels in graphic nameplates, overlays, metal bonding, and specialty vehicle applications. The 3M Adhesive 300 formulation provides outstanding humidity, water, solvent, chemical, and UV resistance, maintaining superior bond strength across a temperature range from -40°F to 250°F (-40°C to 121°C). The roll measures 12 inches wide by 180 yards long, making it ideal for high-volume production environments and rotary die-cutting operations. This product meets automotive OEM specifications including FCA MS-CC240, Ford WSS-M11P62, and GM 9985281.
The densified kraft liner delivers added strength and resists breakage during high-speed processing and automatic dispensing, reducing downtime and material waste. With an 18-month shelf life, this transfer tape is suitable for both indoor and outdoor applications in signage, specialty vehicles, and general industrial bonding. For best results, apply to clean, dry surfaces and press firmly for optimal adhesion.
Key Features
- Excellent adhesion to textured and rough surfaces including low surface energy plastics and foams
- 5.0 mil acrylic adhesive with very high initial adhesion and superior bond strength
- Outstanding humidity, water, solvent, chemical and UV resistance
- Temperature resistant from -40°F to 250°F (-40°C to 121°C)
- 60# densified kraft paper liner resists curling, wrinkling and breakage in high-speed processing
- Suitable for rotary die-cutting and automatic dispensing operations
- Meets automotive OEM specifications: FCA MS-CC240, Ford WSS-M11P62, GM 9985281
- Indoor/outdoor application capability for signage and specialty vehicles
- 18-month shelf life for extended storage capability
- One-piece liner removal for efficient application
Technical Specifications
| Specification |
Value |
| Product Number | 9472 |
| 3M ID | 7010535986 |
| Overall Width (Imperial) | 12 inches |
| Overall Width (Metric) | 304.8 mm |
| Overall Length (Imperial) | 180 yards |
| Overall Length (Metric) | 164.59 meters |
| Adhesive Thickness (Imperial) | 5.12 mil |
| Adhesive Thickness (Metric) | 0.05 mm |
| Adhesive Type | Acrylic Pressure Sensitive (3M Adhesive 300) |
| Primary Liner Material | 60# Densified Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 3.5 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Maximum Operating Temperature (Fahrenheit) | 250°F |
| Maximum Operating Temperature (Celsius) | 121°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Shelf Life | 18 months |
| Indoor/Outdoor | Indoor/Outdoor |
| Application Type | Transfer Tape |
| Color | Clear |
| Smallest Saleable Unit | Roll |
| Automotive OEM Specifications | FCA MS-CC240, Ford WSS-M11P62, GM 9985281 |
| Industries | Signage, Specialty Vehicles |
| Brand | 3M™ |
Order 3M Adhesive Transfer Tape 9472 Clear 12in x 180yd 5mil at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
