Industrial-grade 5 mil acrylic adhesive transfer tape with excellent humidity and UV resistance. Features 60# kraft liner for easy die-cutting and high-speed processing. Bonds well to textured surfaces and LSE plastics up to 250°F.

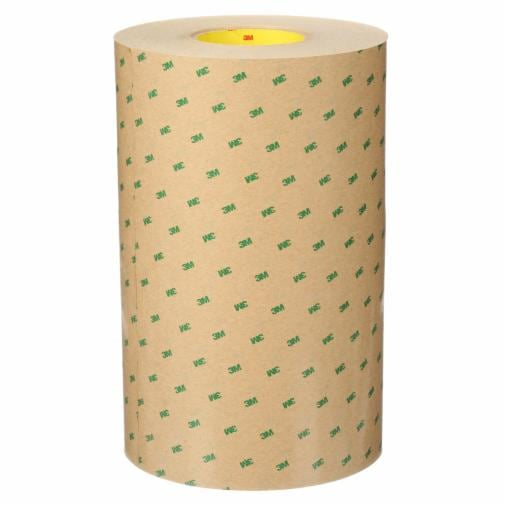

The 3M™ Adhesive Transfer Tape 9472 is a premium pressure-sensitive adhesive transfer tape engineered for industrial and occupational bonding applications. This clear transfer tape features a 5.0 mil thick acrylic adhesive that provides excellent adhesion to a wide variety of textured surfaces, including low surface energy (LSE) plastics, foam, fabrics, and coated papers. The tape comes with a 60# densified kraft (DK) liner that resists curling and wrinkling even in high humidity environments, making it ideal for rotary die-cutting, high-speed processing, and automatic dispensing applications.
Designed for performance and durability, the 3M™ Adhesive Transfer Tape 9472 offers exceptional humidity, water, solvent, chemical, and UV resistance. With a maximum operating temperature of up to 250°F (121°C) and a minimum operating temperature of -40°F (-40°C), this tape maintains its bonding strength across a wide range of environmental conditions. The tape is specifically formulated with 3M™ Adhesive 300, which delivers consistently strong bonds and very high initial adhesion for a wide variety of surface bonding applications.
This transfer tape is ideal for graphic nameplates and overlays on metal and low surface energy plastic surfaces, as well as bonding metal nameplates and rating plates. The 12 inch width and 180 yard length per roll make it suitable for both small-scale and large-scale industrial operations. As an industrial-grade product, the 3M™ Adhesive Transfer Tape 9472 is intended for trained industrial and occupational customers for workplace use only, and is not intended for consumer sale or use.
Key Features
- 5.0 mil acrylic adhesive with excellent humidity, water, solvent, chemical and UV resistance
- High temperature resistance up to 250°F (121°C) with minimum operating temperature of -40°F (-40°C)
- 60# densified kraft paper liner resists curling and wrinkling for reliable performance in high humidity
- Very high initial adhesion for wide variety of substrates including textured surfaces, LSE plastics, foams and coated papers
- Optimized for rotary die-cutting, high-speed processing and automatic dispensing applications
Technical Specifications
| Specification |
Value |
| Product Number | 3M 9472 |
| Adhesive Type | Acrylic (3M™ Adhesive 300) |
| Overall Width | 12 inches (304.8 mm) |
| Overall Length | 180 yards (164.59 meters) |
| Adhesive Thickness | 5.0 mil (0.127 mm) |
| Total Tape Thickness without Liner | 5.12 mil (0.05 mm) |
| Primary Liner | 60# Densified Kraft Paper (Tan) |
| Liner Thickness | 3.5 mils (0.09 mm) |
| Maximum Operating Temperature | 250°F (121°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Indoor/Outdoor Use | Indoor/Outdoor |
| Shelf Life | 18 months |
| Units per Case | 1 Roll |
| UPC Code | 00021200156458 |
| Automotive OEM Specification | FCA MS-CC240, Ford WSS-M11P62, GM 9985281 |
Order 3M Adhesive Transfer Tape 9472 Clear 12 inch 180 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
