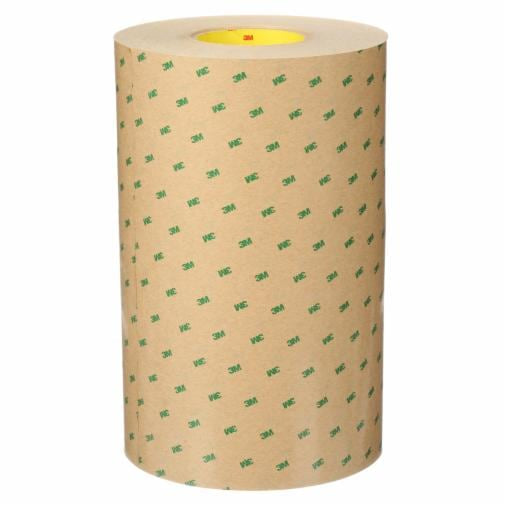

Professional-grade 5 mil acrylic adhesive transfer tape with superior bonding to textured surfaces, excellent temperature and chemical resistance, densified kraft liner for easy die-cutting, and 18-month shelf life.
3M™ Adhesive Transfer Tape 9472 is a premium industrial-grade transfer tape engineered for superior adhesion to a wide variety of textured surfaces including low surface energy plastics, foams, and coated materials. This versatile bonding solution features a 5.0 mil thick acrylic adhesive that delivers exceptional initial adhesion and maintains a consistently strong bond across a wide temperature range from -40°F to 250°F (-40°C to 121°C). The tape is backed with a 60# densified kraft paper liner in tan color that resists curling and wrinkling even in high humidity environments, ensuring reliable performance in challenging conditions.
Designed for professional and industrial applications, this transfer tape offers excellent humidity, water, solvent, chemical, and UV resistance, making it ideal for demanding bonding tasks. The 5.12 mil total thickness without liner provides optimal balance between strength and flexibility. The densified kraft liner delivers added strength and resists breakage during one-piece liner removal, even when used for rotary die-cutting, high-speed processing, and automatic dispensing operations. With an 18-month shelf life and packaged in convenient 4-roll cases, each roll measures 12 inches wide by 60 yards long.
This product meets automotive OEM specifications including FCA MS-CC240, Ford WSS-M11P62, and GM 9985281, making it suitable for a broad range of industries including aerospace, automotive, appliance manufacturing, construction, electronics, food and beverage, general industrial, military and government, packaging, signage, and transportation. Whether you're bonding graphic nameplates and overlays to metal surfaces, attaching rating plates, or handling complex foam gasketing and web splicing applications, 3M Adhesive Transfer Tape 9472 delivers reliable, professional-grade results.
Key Features
- 5.0 mil acrylic adhesive bonds exceptionally well to textured and rough surfaces including low surface energy plastics and foams
- Excellent humidity, water, solvent, chemical and UV resistance for demanding industrial applications
- High temperature resistance up to 250°F (121°C) with low temperature performance down to -40°F (-40°C)
- 60# densified kraft paper liner resists curling and wrinkling in high humidity with added strength for one-piece removal
- Very high initial adhesion suitable for graphic nameplates, overlays, metal rating plates and foam gasketing applications
Technical Specifications
| Specification |
Value |
| Product Number | 3M 9472 |
| Part Number | 9472 |
| UPC Code | 00021200688003 |
| 3M ID | 7010333694 |
| Adhesive Type | Acrylic (Adhesive 300) |
| Overall Width (Imperial) | 12 inches |
| Overall Width (Metric) | 304.8 mm |
| Overall Length (Imperial) | 60 yards |
| Overall Length (Metric) | 54.86 meters |
| Total Tape Thickness without Liner (Imperial) | 5.12 mil |
| Total Tape Thickness without Liner (Metric) | 0.05 mm |
| Primary Liner Material | 60# Densified Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 3.5 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Maximum Operating Temperature (Fahrenheit) | 250°F |
| Maximum Operating Temperature (Celsius) | 121°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Minimum Operating Temperature (Celsius) | -40°C |
| Shelf Life | 18 months |
| Units per Case | 4 rolls |
| Smallest Saleable Unit | Roll |
| Indoor/Outdoor | Indoor/Outdoor |
| Automotive OEM Specifications | FCA MS-CC240, Ford WSS-M11P62, GM 9985281 |
Order 3M Adhesive Transfer Tape 9472 Clear 12 inch 60 yard at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
