High-performance 1 mil acrylic adhesive transfer tape on 55 lb. kraft paper liner for industrial bonding, die-cutting, and tamper-indicating label applications with excellent heat and chemical resistance.

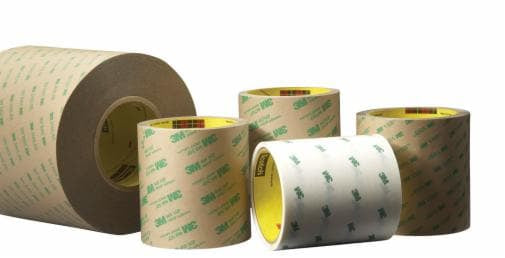

3M™ Adhesive Transfer Tape 9447 is a premium industrial adhesive solution specifically engineered for high-performance bonding applications. This tape features 1 mil of high tenacity acrylic adhesive mounted on a 55 lb. densified kraft paper liner, providing an ideal surface for rotary die-cutting and printing applications. The tape is designed for use with 3M™ Label Component Systems for graphics printing of polyester films and is commonly used in the construction of custom tamper-indicating labels for over-the-counter drugs, banking envelopes, and non-transferable automobile inspection labels.
The high tenacity acrylic adhesive offers excellent flagging resistance and superior adhesion to a variety of substrates, making it suitable for demanding industrial environments. With heat resistance up to 150°F (65°C) for extended periods and short-term resistance up to 250°F (121°C), this tape performs exceptionally well at elevated temperatures. The adhesive also provides excellent chemical resistance, allowing the tape to maintain its bonding integrity in harsh conditions such as automotive hood applications and outdoor environments.
The 55 lb. densified kraft liner is a caliper-controlled hard liner that ensures consistent base performance in rotary printing and die-cutting operations. The thin application of adhesive creates a thin bond line, reducing bulk while maintaining maximum holding power. This transfer tape is ideal for applications requiring protected graphics printing on polyester films and custom tamper-indicating label construction, delivering reliable performance in converter solutions, general industrial, and print industries.
Key Features
- High tenacity acrylic adhesive with excellent flagging resistance and strong substrate adhesion
- Heat resistant up to 150°F (65°C) continuous and 250°F (121°C) short-term applications
- 55 lb. densified kraft paper liner optimized for rotary die-cutting and printing
- Excellent chemical resistance for harsh industrial and outdoor environments
- Thin adhesive application creates minimal bond line while maintaining maximum holding power
- Designed specifically for 3M™ Label Component Systems graphics printing
- Ideal for tamper-indicating and security label construction
- Consistent performance across converter, industrial, and print applications
Technical Specifications
| Specification |
Value |
| Product Number | 3M™ 9447 |
| 3M ID | 7100013752 |
| Adhesive Type | High Tenacity Acrylic Adhesive 320 |
| Adhesive Thickness | 1 mil (0.025 mm) |
| Primary Liner | 55 lb. Densified Kraft Paper |
| Liner Color | White |
| Liner Thickness | 3.2 mil (0.08 mm) |
| Total Tape Thickness without Liner | 1 mil (0.025 mm) |
| Maximum Operating Temperature | 250°F (121°C) short-term; 150°F (65°C) continuous |
| Minimum Operating Temperature | -40°F (-40°C) |
| Temperature Range | -40°F to 150°F (-40°C to 65°C) continuous; up to 250°F (121°C) short-term |
| Chemical Resistance | Excellent resistance to harsh chemical environments |
| Flagging Resistance | Excellent |
| Substrate Adhesion | Superior adhesion to variety of substrates |
| Primary Applications | Graphics printing on polyester films, tamper-indicating labels, label component systems |
| Industries Served | Converter Solutions, General Industrial, Print, Automotive, Aerospace, Electronics |
| Smallest Saleable Unit | Roll |
| Brand | 3M™ |
| Use Type | Industrial/Occupational use only |
| Liner Type | Caliper-controlled hard liner for consistent rotary printing and die-cutting |
Order 3M Adhesive Transfer Tape 9447 Clear 1 mil Roll at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
