Premium 5 mil adhesive transfer tape with 200MP acrylic adhesive for superior bonding to metals and HSE plastics. Features clear PET liner for visual inspection, exceptional temperature resistance (-40°F to 400°F), and temporary repositionability. Ideal for aerospace, automotive, medical, and industrial applications.

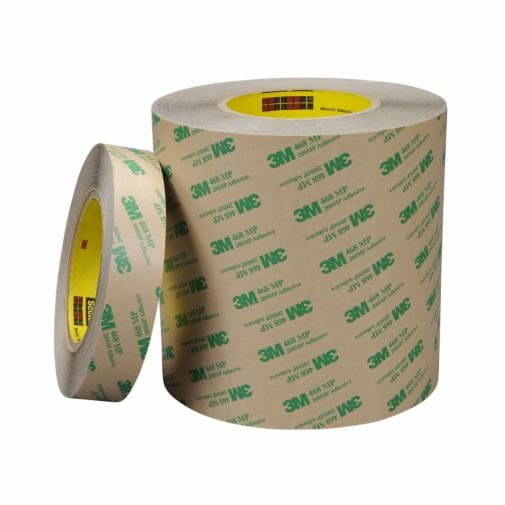

3M™ Adhesive Transfer Tape 468MPF is a premium industrial-grade adhesive transfer tape designed for exceptional bonding performance on metals and high surface energy (HSE) plastics. This 5 mil nominal adhesive tape delivers outstanding peel and shear strength, making it the ideal solution for demanding industrial applications including aerospace, automotive, medical, and electronics manufacturing. The tape features 3M's renowned 200MP acrylic adhesive, which has been the industry standard for graphic attachment and general industrial joining applications for over 30 years.
The 468MPF model is constructed with a clear polyester (PET) film liner that measures 2.0 mils thick, providing superior strength and dimensional stability during high-speed die cutting and dispensing operations. Unlike traditional kraft paper liners, the transparent PET liner allows for complete visual inspection of bonded parts, ensuring quality control and precision placement. The thicker 5.2 mil adhesive layer significantly improves wet-out capability and adhesion on textured surfaces, making it particularly effective for applications where surface irregularities might compromise bonding with thinner adhesives.
This high-performance tape offers exceptional resistance to solvents, humidity, and moisture, with demonstrated performance at temperatures ranging from -40°F to 400°F (-40°C to 204°C). The temporarily repositionable adhesive feature reduces rework and improves placement accuracy during assembly operations. With an 18-month shelf life and compliance with automotive OEM specifications including FCA MS-CC240 and Ford WSS-M11P62, the 468MPF is engineered for long-term durability and reliability across multiple industries including aerospace, appliance manufacturing, automotive, electronics, medical devices, and metalworking applications.
Key Features
- 5 mil nominal adhesive thickness delivers exceptional peel and shear strength for metals and HSE plastics
- Clear polyester (PET) film liner allows complete visual inspection and permits high-speed die cutting without stretching
- Industry-standard 200MP acrylic adhesive provides outstanding moisture and solvent resistance
- Temporarily repositionable for placement accuracy and reduced rework during assembly
- Exceptional temperature performance from -40°F to 400°F with short-term heat resistance capability
- Thicker adhesive layer improves wet-out and adhesion on textured surfaces
- Complies with automotive OEM specifications FCA MS-CC240 and Ford WSS-M11P62
- 18-month shelf life with reliable long-term bonding performance
Technical Specifications
| Specification |
Value |
| Product Number | 468MPF |
| 3M ID | 7100000207 |
| Adhesive Type | Acrylic (200MP High Performance) |
| Adhesive Thickness | 5.2 mils (0.13 mm) |
| Total Tape Thickness without Liner | 5 mil (0.127 mm) |
| Primary Liner Type | Polyester Film (PET) |
| Primary Liner Color | Transparent/Clear |
| Primary Liner Thickness | 2.0 mils (0.05 mm) |
| Maximum Operating Temperature | 400°F (204°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Indoor/Outdoor Rating | Indoor/Outdoor |
| Shelf Life | 18 months |
| Smallest Saleable Unit | Roll |
| Automotive OEM Specifications | FCA MS-CC240, Ford WSS-M11P62 |
| Adhesive Repositionability | Temporarily repositionable |
| Solvent Resistance | Very high resistance |
| Humidity Resistance | Very high resistance |
| Primary Applications | Metal bonding, HSE plastic bonding, graphic overlays, nameplate attachment, aerospace, automotive, medical devices |
Order 3M Adhesive Transfer Tape 468MPF Clear 5 mil Roll at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
