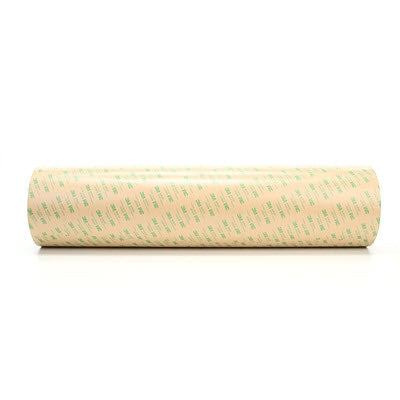

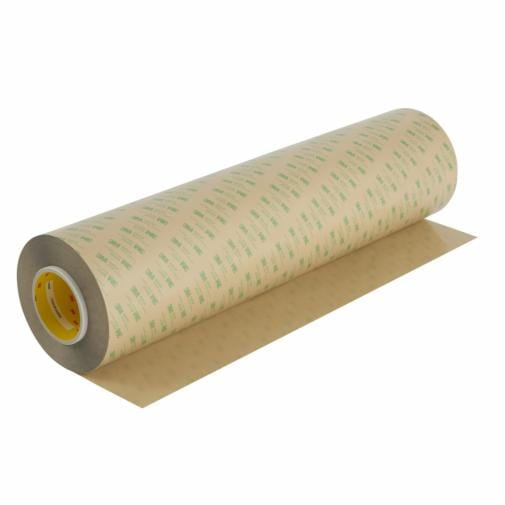

High-performance 3M adhesive transfer tape with 200MP acrylic adhesive for metal and HSE plastic bonding, 23.5 in x 180 yd roll, 5 mil thickness, PCK liner, industrial grade with excellent solvent and humidity resistance.
3M™ Adhesive Transfer Tape 468MP is a high-performance adhesive solution featuring 3M's renowned 200MP acrylic adhesive, specifically designed for bonding metal and high surface energy (HSE) plastics. This industrial-grade transfer tape comes in a clear format with dimensions of 23 1/2 inches width by 180 yards length, with a 5 mil total tape thickness. The tape is mounted on a 58# polycoated kraft paper (PCK) liner that provides excellent strength for splicing and laminating applications.
The 468MP transfer tape delivers exceptional peel and shear strength, making it ideal for long-term bonding applications including metal nameplate attachment, graphic overlay bonding, and high-speed processing of industrial components. The thicker 5.2 mil adhesive formulation improves wet-out capability and adhesion on textured surfaces, while the 200MP acrylic adhesive is recognized as the industry standard for graphic attachment and general industrial joining. This tape maintains performance across a wide temperature range from -40°C to 204°C (400°F), providing excellent resistance to solvents, humidity, and moisture exposure.
Designed for industrial and occupational use only, this adhesive transfer tape is temporarily repositionable for accurate placement and offers outstanding durability in demanding environments. The product meets UL 746C and UL 969 specifications and complies with automotive OEM standards including GMW 14892 and Ford WSS-M99P48-B3, making it suitable for appliance, automotive, electronics, and signage applications across multiple industries.
Key Features
- Exceptional peel and shear strength for metals and high surface energy plastics
- 58# polycoated kraft paper liner for high-strength bonding in splicing and laminating applications
- Thicker 5.2 mil adhesive improves wet-out and adhesion on textured surfaces
- Excellent resistance to solvents, humidity, and moisture with temperature range -40°C to 204°C
- Industry-standard 200MP acrylic adhesive for graphic attachment and general industrial joining
- Temporarily repositionable for accurate placement and assembly
- Complies with UL 746C, UL 969, GMW 14892, and Ford WSS-M99P48-B3 specifications
- Suitable for high-speed processing of medical components, durable labels, and flexible circuits
Technical Specifications
| Specification |
Value |
| Product Number | 468MP |
| UPC Code | 00021200188336 |
| 3M ID | 7010311720 |
| Overall Width (Imperial) | 23 inches |
| Overall Width (Metric) | 584.2 mm |
| Overall Length (Imperial) | 180 yards |
| Overall Length (Metric) | 164.59 meters |
| Total Tape Thickness without Liner (Imperial) | 5 mil |
| Total Tape Thickness without Liner (Metric) | 0.127 mm |
| Adhesive Thickness | 5.2 mil |
| Adhesive Type | High Performance Acrylic Adhesive 200MP |
| Primary Liner Material | 58# Polycoated Kraft Paper (PCK) |
| Primary Liner Thickness (Imperial) | 4.2 mil |
| Primary Liner Thickness (Metric) | 0.11 mm |
| Primary Liner Color | Tan |
| Product Color | Transparent/Clear |
| Product Form | Roll |
| Number of Adhesive Sides | Double-sided |
| Units per Case | 1 Roll |
| Smallest Saleable Unit | Roll |
| Shelf Life | 24 months |
| Minimum Operating Temperature (Celsius) | -40°C |
| Minimum Operating Temperature (Fahrenheit) | -40°F |
| Maximum Operating Temperature (Celsius) | 204°C |
| Maximum Operating Temperature (Fahrenheit) | 400°F |
| Indoor/Outdoor | Indoor/Outdoor |
| Moisture Resistant | No |
| Flame Retardant | No |
| UV Resistant | N/A |
| Specifications Met | UL 746C, UL 969 |
| Automotive OEM Specification | GMW 14892, Ford WSS-M99P48-B3 |
| Brand | 3M |
| Recommended Applications | Bonding metal nameplates, graphic overlays, medical components, membrane switches, durable labels, flexible circuits |
| Applicable Industries | Appliance, Automotive, Consumer Goods, Electronics, Furniture, General Industrial, Point of Purchase, Signage, Specialty Vehicles, Transportation |
