Premium dual-adhesive acrylic foam tape for lightweight automotive trim, emblems, and nameplates with superior stress relaxation and excellent bonding to paint systems.

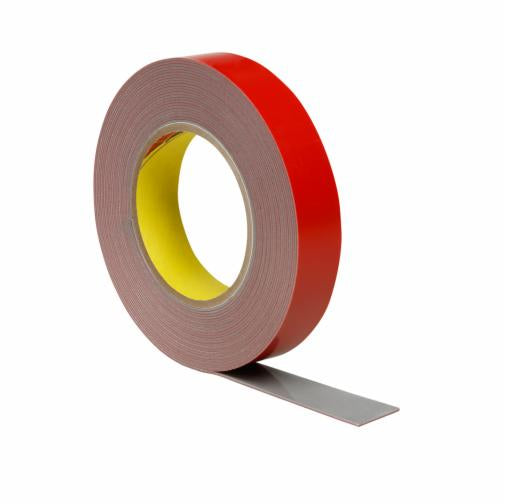

3M™ Acrylic Foam Tape 5392FLR is a premium automotive attachment solution designed specifically for lightweight emblems, nameplates, and trim applications. This dual-adhesive tape features a thin, conformable 0.5mm viscoelastic acrylic foam core with two different acrylic adhesives—one on each side for effective bonding. The liner-side adhesive delivers excellent initial and final adhesion to automotive paint systems, while the non-liner-side adhesive is ideal for bonding to automotive trim, parts, and other components.
The gray, closed-cell foam core provides superior stress relaxation under load while maintaining bond-line aesthetics under normal stress conditions. The polyester liner with 3M logo branding enhances die-cutting precision and provides easy one-piece release for efficient application. This OEM-specification tape (GMW15201 Type XIIIB) is engineered for flush, streamlined application of lightweight auto trim and parts, making it perfect for badges, body side moldings, locator pins, and window lace moldings.
3M recommends using 3M™ Adhesion Promoter for enhanced tape-to-part adhesion, especially on plastics such as RIM, TPO, PPO, PP, and PC. With over a century of adhesive innovation since 1925, 3M's Acrylic Foam Tape 5392FLR represents decades of research and development dedicated to automotive OEM applications.
Key Features
- Dual-adhesive design with different formulations on each side for optimal bonding to multiple substrates
- Thin 0.5mm viscoelastic acrylic foam core for stress relaxation and load distribution
- Excellent initial and final adhesion to automotive paint systems and trim components
- Gray closed-cell foam provides pleasing bond-line aesthetics and color concealment
- Polyester liner with 3M logo branding enhances die-cutting precision and identification
- OEM specification GMW15201 Type XIIIB for automotive applications
- Cost-effective adhesion to plastics and traditional paint systems on non-liner side
- Easy one-piece release for efficient and accurate application
Technical Specifications
| Specification |
Value |
| Product Number | 5392FLR |
| 3M ID | B40065729 |
| Foam Core Thickness | 0.5mm |
| Foam Core Color | Gray |
| Foam Core Type | Closed-cell acrylic foam |
| Adhesive Type | Dual acrylic adhesive (liner-side and non-liner-side) |
| Liner Material | Polyester |
| Liner Color | Red with 3M logo |
| Application | Automotive Exterior Attachment, Automotive Glass Attachment |
| OEM Specification | GMW15201 Type XIIIB |
| Product Usage | Badges, Body Side Moldings, Locator Pins, Window Lace Moldings |
| Brand | 3M™ |
| Recommended Applications | Lightweight emblems, nameplates, badges, mechanically assisted narrow moldings, window lace |
| Recommended Adhesion Promoter | 3M™ Adhesion Promoter for enhanced bonding on plastics (RIM, TPO, PPO, PP, PC) |
| Warranty | Standard 3M product warranty - contact sales representative for details |
Order 3M Acrylic Foam Tape 5392FLR Gray 0.5mm at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
