Description

Outdoor CPE solution for long-range wireless data transmission, equipped with high-gain antennas and enterprise-level chipsets.
The TP-Link CPE220 is a robust outdoor wireless solution designed for long-range data transmission over distances exceeding 13km. Its high-performance dual-polarized antenna, coupled with a Qualcomm Atheros enterprise-level chipset, ensures reliable connectivity in various environments. The device is equipped with Pharos MAXtream TDMA technology, optimizing throughput and reducing latency, making it ideal for point-to-multipoint applications. Additionally, the CPE220 features a weatherproof design, capable of operating in extreme temperatures ranging from -40¡C to +70¡C. The centralized management system, Pharos Control, allows for efficient monitoring and management of the network devices, enhancing the user experience.

Key Features

  • Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 30dBm/1000mw
  • System-level optimizations for 13km+ long range wireless transmission
  • Pharos MAXtream TDMA technology for improved throughput
  • Centralized Management System - Pharos Control

Technical Specifications

Specification Value
ProcessorQualcomm Atheros 560MHz CPU, MIPS 24Kc
Memory64MB DDR2 RAM, 8MB Flash
Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1), 1 Grounding Terminal, 1 Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (16-27VDC)
AntennaBuilt-in 12dBi 2x2 Dual-polarized Directional Antenna

Read more

Product form

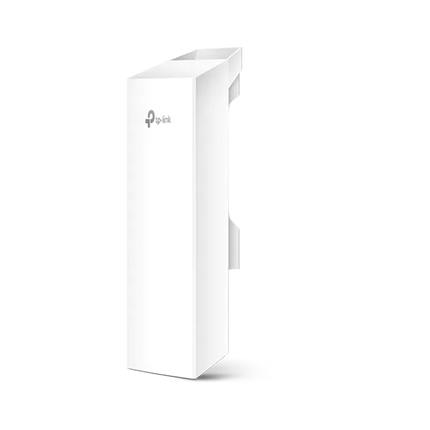

2.4GHz 300Mbps 12dBi Outdoor CPE

TP_Link

SKU: CPE220

64,500 IQD
