Professional 16mm metric combination wrench with Flank Drive technology delivering 15-20% more turning power, precision-forged alloy steel construction, nickel-chrome plating, and ASME/ANSI certified for industrial and aerospace applications.

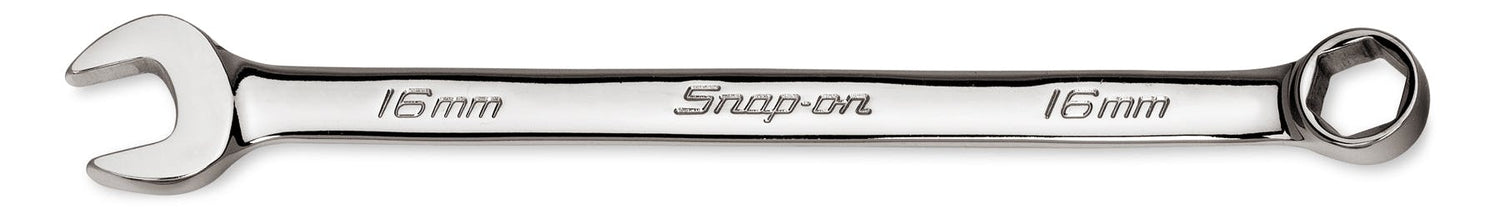

The Snap-on 16mm 6-Point Metric Flank Drive Combination Wrench (OSHM160B) is a professional-grade hand tool engineered for maximum performance and durability in demanding work environments. This premium wrench features the innovative Flank Drive system that grips fastener flats and delivers up to 15-20% more turning power compared to conventional wrenches, making it ideal for heavy-duty applications in aviation, aerospace, military, defense, oil and gas, power generation, and general industrial settings.
Manufactured from special alloy steel and precision forged with heat treatment, this wrench provides superior strength and durability to minimize wear and breakage during extended use. The continuous arc design distributes stress evenly across the entire wrench opening radius, ensuring reliable performance under extreme conditions. At 242mm in length, the wrench offers increased leverage and exceptional access to hard-to-reach fastening areas, while the 7.5° offset broaching design allows users to flip the box end for more advantageous grip positioning in restricted clearance spaces.
The nickel-chrome plating delivers a mirror-like finish that not only protects against corrosion but also makes maintenance simple and quick. The wrench is precision-sized for optimum comfort and balance in hand, reducing operator fatigue during prolonged use. Compliant with ASME/ANSI B107.100 standards, this Flank Drive combination wrench is the trusted choice of professional technicians and maintenance crews across critical industries worldwide.
Key Features
- Flank Drive system provides up to 15-20% more turning power than conventional wrenches
- 242mm length offers increased leverage and access to hard-to-reach fastening areas
- 7.5° offset broaching allows flipping for advantageous grip in restricted clearance spaces
- Continuous arc design distributes stress over entire wrench opening radius for superior strength
- Precision-forged special alloy steel with heat treatment ensures durability and reduces wear
- Nickel-chrome plating provides mirror-like finish with excellent corrosion protection
- Optimally sized and balanced for comfort during extended use
- ASME/ANSI B107.100 certified for professional industrial applications
- 6-point design prevents fastener rounding and provides reliable grip
- Suitable for aviation, aerospace, military, defense, oil and gas, and power generation industries
Technical Specifications
| Specification |
Value |
| Model | OSHM160B |
| Size | 16 mm |
| Style | 6-Point |
| Type | Metric Flank Drive Combination Wrench |
| Overall Length | 242 mm |
| Dimension A (Outside Diameter) | 24 mm |
| Dimension B (Outside Diameter) | 33 mm |
| Dimension C (Head Depth) | 10 mm |
| Dimension D (Head Depth) | 7 mm |
| Material | Special Alloy Steel, Precision Forged and Heat Treated |
| Finish | Chrome (Nickel-Chrome Plating) |
| Offset | 7.5° Offset Broaching |
| Design Feature | Continuous Arc Design with Flank Drive System |
| Standards Compliance | ASME/ANSI B107.100 |
| Turning Power Advantage | 15-20% More Turning Power vs Conventional Wrenches |
| List Price | $53.50 |
