Shop Snap-On 14 mm 12-Point Metric Flank Drive® Combination Wrench | OEXM140B In Iraq Best Prices
Premium 14mm metric combination wrench with Flank Drive system providing 15-20% more turning power, precision-forged alloy steel construction, nickel-chrome finish, and ASME/ANSI compliant design for professional mechanics.

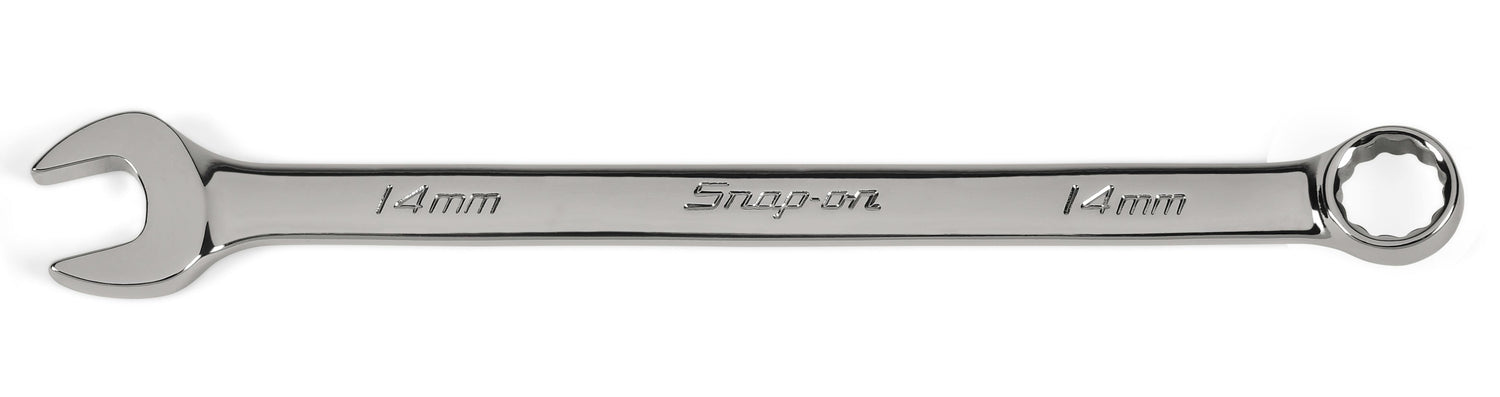

The Snap-on 14mm 12-Point Metric Flank Drive Combination Wrench (Model OEXM140B) is a premium-quality hand tool designed for professional mechanics and industrial applications. This wrench features the innovative Flank Drive system that grips the fastener flats to provide up to 15-20% more turning power compared to conventional wrenches, reducing the risk of fastener damage and rounding. The combination design includes both an open end and a 12-point box end, making it versatile for various fastening tasks.
Manufactured from special alloy steel, this wrench is precision forged and heat treated to deliver superior strength and durability while minimizing wear and breakage. The longer handle provides increased leverage and greater access to hard-to-reach areas, making it ideal for complex mechanical work. The 7.5° offset broaching allows users to flip the box end over to obtain a more advantageous grip on fasteners in restricted clearance areas, enhancing accessibility and control.
The wrench features a tough, durable nickel-chrome plating that produces a mirror-like finish, protecting against corrosion and ensuring easy cleaning and maintenance. With dimensions of 219mm in length and precision-engineered head geometry (9mm and 7mm head depths), this tool is sized for optimum comfort and balance. Compliant with ASME/ANSI B107.100 standards, this professional-grade wrench is an essential addition to any technician's toolkit.
Key Features
- Flank Drive system grips fastener flats for up to 15-20% more turning power
- 12-point box end design for versatile fastening applications
- 7.5° offset broaching allows flexible grip positioning in restricted clearance areas
- Longer handles provide increased leverage and access to hard-to-reach areas
- Precision-forged special alloy steel with heat treatment for superior durability
- Nickel-chrome plating with mirror-like finish resists corrosion
- 219mm length sized for optimum comfort and hand balance
- ASME/ANSI B107.100 standards compliant
- Continuous arc design distributes stress over entire wrench opening radius
- Easy to clean and maintain professional-grade construction
Technical Specifications
| Specification |
Value |
| Model Number | OEXM140B |
| Size | 14 mm |
| Style | 12-Point |
| Type | Metric Flank Drive Combination Wrench |
| Total Length | 219 mm |
| Dimension A (Outside Diameter) | 21 mm |
| Dimension B (Outside Diameter) | 29 mm |
| Dimension C (Head Depth) | 9 mm |
| Dimension D (Head Depth) | 7 mm |
| Finish | Chrome (Nickel-Chrome Plating) |
| Material | Special Alloy Steel |
| Construction | Precision Forged and Heat Treated |
| Offset Angle | 7.5° |
| Standards Compliance | ASME/ANSI B107.100 |
| Handle Type | Standard Handle |
| Brand | Snap-on |
| List Price | $46.00 |
| Stock Status | Available in Stock |
Order Snap-On 14 mm 12-Point Metric Flank Drive® Combination Wrench | OEXM140B at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
