Professional 11/16" 12-point SAE combination wrench with Flank Drive® system delivering 15-20% more turning power, precision-forged alloy steel construction, nickel-chrome plating, and 7.5° offset for restricted clearance access.

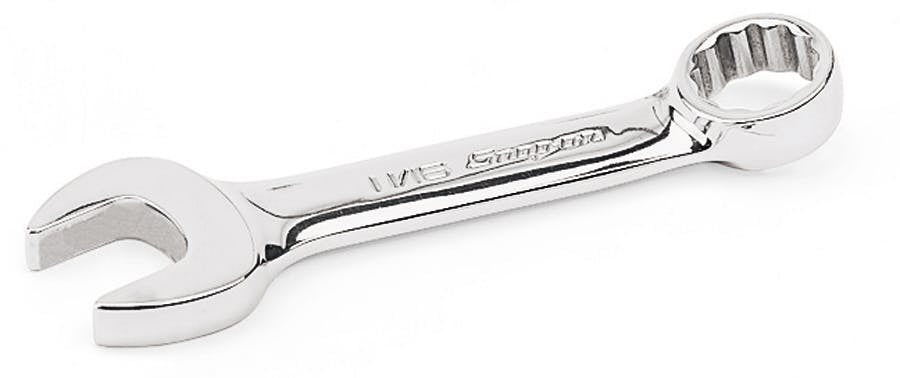

The 11/16" 12-Point SAE Flank Drive® Combination Wrench (OEX22B) is a professional-grade hand tool engineered for maximum performance in demanding industrial environments. This precision-forged wrench features Snap-on's proprietary Flank Drive® system, which grips fastener flats and delivers up to 15-20% more turning power compared to conventional wrenches. The combination design provides both open-end and box-end functionality in a single tool, making it an essential addition to any professional toolkit.
Manufactured from special alloy steel and heat-treated to exacting standards, this wrench delivers superior strength and durability while resisting wear and breakage under heavy-duty conditions. The 7.5° offset broaching design allows users to flip the box end for optimal grip positioning in restricted clearance areas, providing unmatched versatility for complex fastening tasks. The continuous arc design distributes stress evenly across the entire wrench opening radius, ensuring longevity and reliability in professional applications.
With a length of 10-1/4 inches and precision-engineered dimensions, this wrench is sized for optimum comfort and balance. The tough, durable nickel-chrome plating produces a mirror-like finish that protects against corrosion and facilitates easy cleaning. This tool meets ASME® B107.100 standards and is ideal for aviation, aerospace, military, defense, oil and gas, power generation, and general industrial applications.
Key Features
- Flank Drive® system provides up to 15-20% more turning power than conventional wrenches
- 7.5° offset broaching allows flipping for optimal grip in restricted clearance areas
- Precision-forged special alloy steel with heat treatment for superior strength and durability
- Continuous arc design distributes stress evenly for greater strength and longevity
- Nickel-chrome plating provides corrosion resistance and mirror-like finish for easy cleaning
- Combination design offers both open-end and box-end functionality in single tool
- Sized for optimum comfort and balance in professional hands
- Meets ASME® B107.100 international standards
- 10-1/4 inch length provides increased leverage and access to hard-to-reach areas
- 12-point configuration for improved grip on fasteners
Technical Specifications
| Specification |
Value |
| SKU | OEX22B |
| Size | 11/16 inches |
| Point Configuration | 12-Point |
| Type | SAE Combination Wrench |
| Style | Flank Drive® |
| Length (Dimension E) | 10-1/4 inches |
| Outside Diameter A | 1-1/32 inches |
| Outside Diameter B | 1-13/32 inches |
| Head Depth C | 7/16 inches |
| Head Depth D | 5/16 inches |
| Material | Special Alloy Steel |
| Finish | Nickel-Chrome Plating |
| Offset | 7.5° Offset Broaching |
| Standard Compliance | ASME® B107.100 |
| Design Feature | Continuous Arc Design |
| Performance Advantage | 15-20% More Turning Power |
| Catalog Page | 109 |
| List Price | $55.25 |
| Availability | In Stock |
| Manufacturing Process | Precision Forged and Heat Treated |
