Description

Single-mode media converter for converting 100BASE-FX fiber to 100Base-TX copper media.
The MC110CS is a single-mode media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Complying with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, it supports longwave (LX) laser specification at full wire speed forwarding rate. Ideal for extending fiber optic distances up to 20 kilometers, it operates at 1310nm for both transmitting and receiving data. This versatile device can be used as a standalone unit or with TP-LINKÕs TL-MC1400 chassis, featuring auto MDI/MDI-X for TX port and auto negotiation of duplex mode. With its robust design, the MC110CS ensures reliable and efficient media conversion, making it an essential component for business networking solutions.

Key Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Extends fiber distance up to 20km
  • Operates at 1310nm wavelength
  • Can be used standalone or with TP-LINKÕs TL-MC1400 chassis

Technical Specifications

Specification Value
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic FunctionAuto-negotiation of Half-Duplex / Full-Duplex transfer mode, Full Duplex Flow Control (IEEE 802.3x), Half Duplex Flow Control (Backpressure), Extends fiber distance up to 20km
Ports1 100M SC/UPC port, 1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length1310nm
LED IndicatorsPWR, Link/Act

Read more

Product form

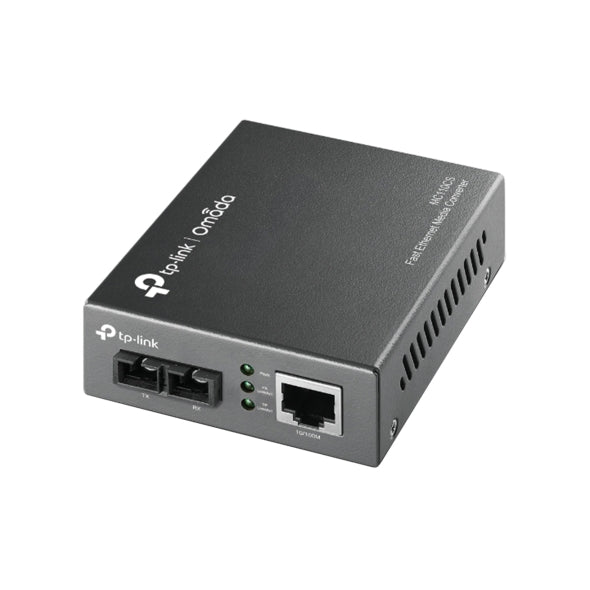

10/100Mbps Single-Mode Media Converter

TP_Link

SKU: MC110CS

25,000 IQD

  • Shipped today? Order within: Apr 09, 2025 17:00:00 +0300
    • Shipped today? Order within: Apr 09, 2025 17:00:00 +0300

    Description

    Single-mode media converter for converting 100BASE-FX fiber to 100Base-TX copper media.
    The MC110CS is a single-mode media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Complying with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, it supports longwave (LX) laser specification at full wire speed forwarding rate. Ideal for extending fiber optic distances up to 20 kilometers, it operates at 1310nm for both transmitting and receiving data. This versatile device can be used as a standalone unit or with TP-LINKÕs TL-MC1400 chassis, featuring auto MDI/MDI-X for TX port and auto negotiation of duplex mode. With its robust design, the MC110CS ensures reliable and efficient media conversion, making it an essential component for business networking solutions.

    Key Features

    • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
    • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
    • Extends fiber distance up to 20km
    • Operates at 1310nm wavelength
    • Can be used standalone or with TP-LINKÕs TL-MC1400 chassis

    Technical Specifications

    Specification Value
    Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Basic FunctionAuto-negotiation of Half-Duplex / Full-Duplex transfer mode, Full Duplex Flow Control (IEEE 802.3x), Half Duplex Flow Control (Backpressure), Extends fiber distance up to 20km
    Ports1 100M SC/UPC port, 1 10/100M RJ45 port (Auto MDI/MDIX)
    Wave Length1310nm
    LED IndicatorsPWR, Link/Act
