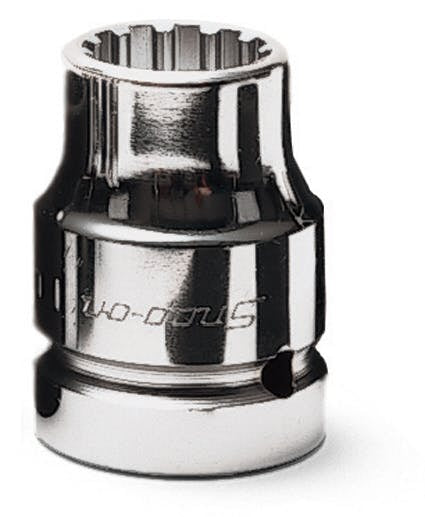

Shop Snap-on 1" Drive SAE #32, 1" Hex, Shallow Spline Socket (chrome) | LES323B In Iraq Best Prices
Professional-grade 1" drive shallow spline socket with SAE #32 spline size and 1" hex. Chrome-plated for corrosion resistance. Complies with military specifications and works on 6- and 12-point fasteners.
The 1" Drive SAE #32, 1" Hex, Shallow Spline Socket (chrome) model LES323B is a professional-grade tool manufactured by Snap-on, designed for heavy-duty fastening applications in aviation, aerospace, military, and industrial maintenance. Constructed from special alloy steel and heat-treated for optimum strength and durability, this socket delivers exceptional performance and reliability in demanding work environments. The nickel-chrome plating provides superior corrosion resistance and facilitates easy cleaning, ensuring the tool maintains its appearance and functionality throughout its service life.
This shallow spline socket features Snap-on's innovative spline wrenching configuration, which not only works with spline fasteners but also allows for use on ordinary 6- and 12-point fasteners with an advantage similar to the Snap-on Flank Drive wrenching system. This versatility makes it an invaluable addition to any professional tool collection. The socket complies with military specifications including AS954, Military Spec. MS-33787, and MIL-W-8982, ensuring it meets the highest standards for aerospace and defense applications.
With a 1-inch drive size and 1-inch hex size, this socket is specifically engineered for SAE #32 spline fasteners. The shallow design provides optimal clearance and accessibility in tight spaces, while maintaining the structural integrity required for industrial-grade applications. Whether you're working in aircraft maintenance, military equipment servicing, or general heavy-duty industrial work, this Snap-on socket delivers the precision and reliability professionals demand.
Key Features
- Special alloy steel construction heat-treated for maximum strength and durability
- Nickel-chrome plating provides superior corrosion resistance and easy cleaning
- Unique spline wrenching configuration works with 6- and 12-point fasteners
- Complies with military specifications AS954, MS-33787, and MIL-W-8982
- Professional-grade tool suitable for aviation, aerospace, military, and industrial applications
Technical Specifications
| Specification |
Value |
| Product SKU | LES323B |
| Drive Size | 1 inch |
| Spline Size | SAE #32 |
| Hex Size | 1 inch |
| Socket Type | Shallow Spline Socket |
| Finish | Chrome with Nickel-Chrome Plating |
| Dimension A - Hex End Diameter | 1-29/64 inches |
| Dimension B - Drive End Diameter | 1-55/64 inches |
| Dimension C - Bolt Clearance Depth | 1-35/64 inches |
| Dimension D - Length | 2-7/16 inches |
| Dimension E - Hex Depth | 53/64 inches |
| Material | Special Alloy Steel, Heat-Treated |
| Military Compliance | AS954, MS-33787, MIL-W-8982 |
| List Price | $227.50 |
| Availability | In Stock |
Order Snap-on 1" Drive SAE #32, 1" Hex, Shallow Spline Socket (chrome) | LES323B at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
