Shop Snap-On 1-1/16" 12-Point SAE Flank Drive® Combination Wrench | OEX34B In Iraq Best Prices
Professional 1-1/16" 12-point SAE combination wrench with Flank Drive® technology providing 15-20% more turning power, precision forged from special alloy steel with nickel-chrome plating.

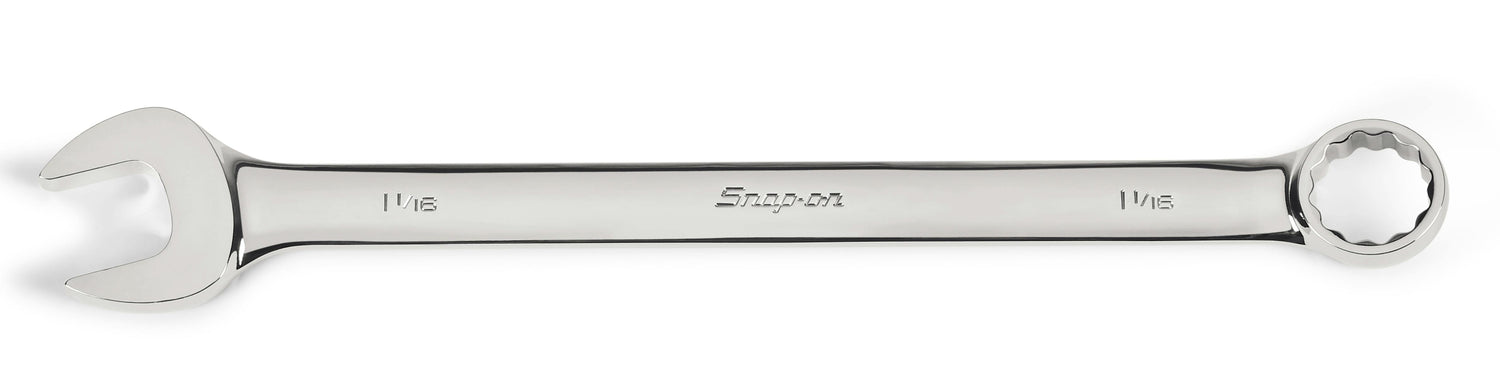

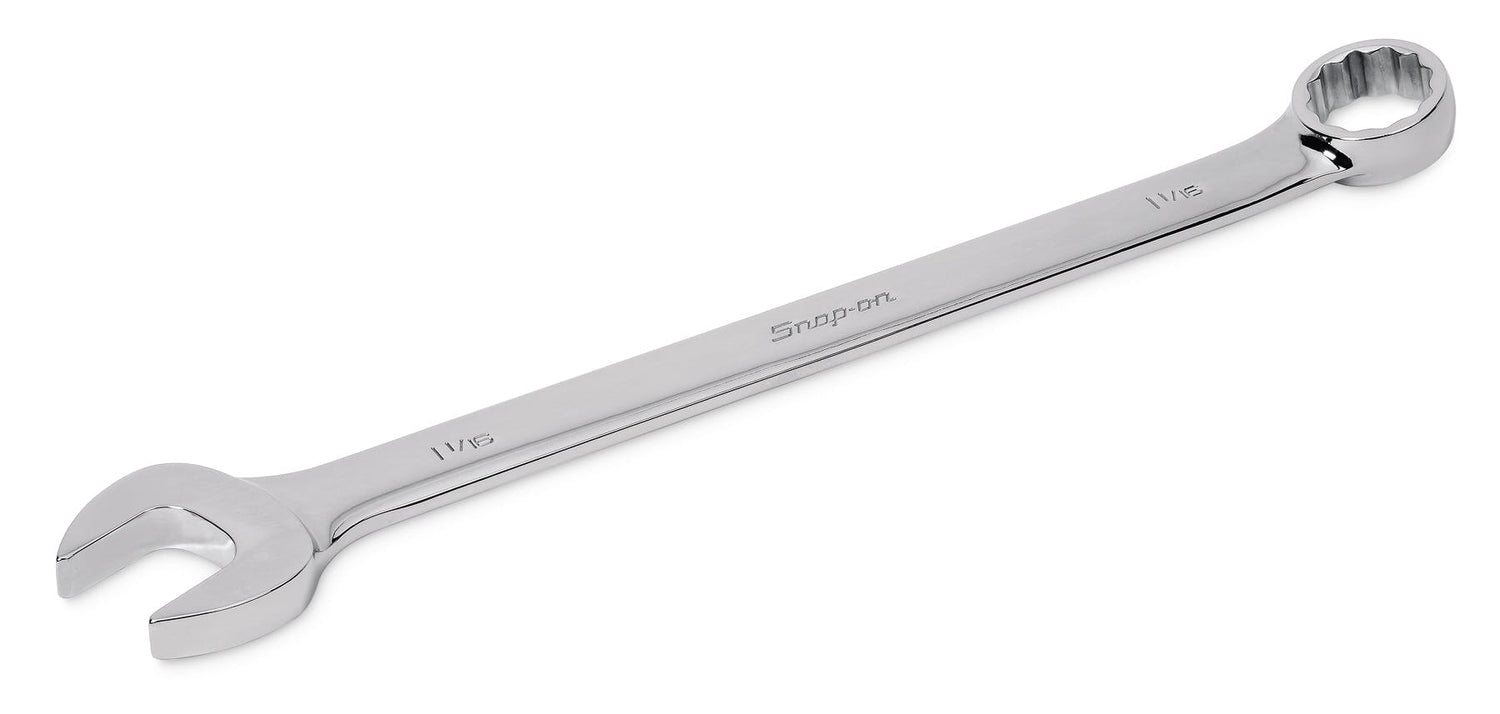

The 1-1/16" 12-Point SAE Flank Drive® Combination Wrench (Model OEX34B) is a premium professional-grade tool manufactured by Snap-on, designed for precision fastening and maintenance applications. This wrench features the innovative Flank Drive® system which grips the fastener flats directly, providing up to 15-20% more turning power compared to conventional wrenches. The combination design offers both open-end and box-end functionality in a single tool, maximizing versatility for technicians and mechanics working in demanding environments.
Crafted from special alloy steel that is precision forged and heat treated, this wrench delivers superior strength and durability while minimizing wear and breakage during intensive use. The 7.5° offset broaching design allows users to flip the box end for more advantageous grip positioning in restricted clearance areas, making it ideal for complex mechanical work. The continuous arc design distributes stress evenly over the entire wrench opening radius, ensuring long-lasting performance and reliability.
The wrench features a tough, durable nickel-chrome plating that produces a mirror-like finish, providing excellent corrosion protection and easy maintenance. Sized at 1-1/16" with an overall length of 14-3/4 inches, this tool offers optimum comfort and balance in hand. With dimensions of 1-9/16" outside diameter on one end and 2-3/16" on the other, combined with a head depth of 11/16", this wrench is engineered for professional technicians who demand reliable, high-performance tools.
Key Features
- Flank Drive® system grips fastener flats providing 15-20% more turning power than conventional wrenches
- 7.5° offset broaching allows flipping box end for advantageous grip in restricted clearance areas
- Continuous arc design distributes stress over entire wrench opening radius for greater strength
- Precision forged and heat treated special alloy steel construction for superior durability and reduced wear
- Nickel-chrome plating provides mirror-like finish with excellent corrosion protection and easy cleaning
- Combination design offers both open-end and box-end functionality in single tool
- Optimum comfort and balance sizing for professional hand tool applications
- ASME® B107.100 compliance ensures industry standard quality and performance
Technical Specifications
| Specification |
Value |
| Product SKU | OEX34B |
| Size | 1-1/16 inches SAE |
| Style | 12-Point |
| Type | Combination Wrench (Open-end and Box-end) |
| Overall Length | 14-3/4 inches |
| Dimension A (Outside Diameter) | 1-9/16 inches |
| Dimension B (Outside Diameter) | 2-3/16 inches |
| Dimension C (Head Depth) | 11/16 inches |
| Dimension D (Head Depth) | 15/32 inches |
| Material | Special Alloy Steel |
| Finish | Chrome with Nickel-Chrome Plating |
| Offset Angle | 7.5° offset broaching |
| Standards Compliance | ASME® B107.100 |
| Manufacturer | Snap-on Incorporated |
| List Price | $121.00 |
Order Snap-On 1-1/16" 12-Point SAE Flank Drive® Combination Wrench | OEX34B at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
