شكل المنتج

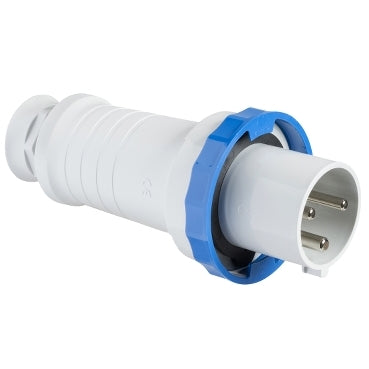

بلك/ فيشة 3 فيز فحل ثنائي 63 امبير | straight - 2P + E - 200...250 V AC - IP67

لمشاركة المنتج

رمز المنتج: 81378

40,500 IQD

شحن محلي ودولي لجميع الوجهات
براندات عالمية أصلية
طرق دفع آمنة 100%
دعم على مدار الساعة 24/7

range	PratiKa
product or component type	Wander plug
device short name	PratiKa plug
plug, socket category	Low voltage
poles description	2P + E
network type	AC
outlet standard	Industrial
plug, socket, control station shape	Straight
[In] rated current	63 A
[Ue] rated operational voltage	200...250 V
network frequency	50/60 Hz
ground lug clockwise position	6 h
plug, socket material	Housing: self-extinguishing engineering polymer
contacts material	Pins: nickel plated brass
connections - terminals	Captive screws
cable cross section	6…25 mm²
cable outer diameter	17…31 mm
cable entry	Cable gland
thread type	Pg 36
net weight	0.672 kg
height	265 mm
width	110 mm
depth	110 mm
colour	Grey (RAL 7035)
voltage colour	Blue
