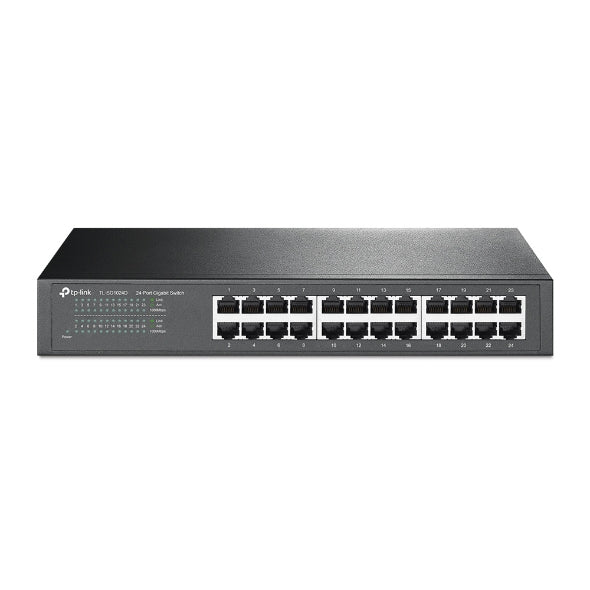

High-performance 24-port Gigabit switch with eco-friendly technology to reduce power consumption.
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to transform your old network to a 1000Mbps network. All 24 ports support auto MDI/MDIX, eliminating cable type concerns, simply plug and play. Moreover, with its innovative energy-efficient technology, the TL-SG1024D can significantly reduce power consumption, making it an eco-friendly solution for your business network. This switch features the latest energy-efficient technologies, adjusting power consumption according to link status to reduce carbon footprint. It complies with the EU's RoHS, prohibiting hazardous materials, and most packaging materials are recyclable. It offers non-blocking switching architecture, forwarding and filtering packets at full wire-speed for maximum throughput, making it an ideal choice for updating your network to Gigabit while preserving previous investments.
Key Features
- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
- Complies with EU's RoHS, prohibiting hazardous materials
Technical Specifications
| Specification |
Value |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (max 100m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above (max 100m) |
| Fan Quantity | Fanless |
| Power Supply | 100-240VAC, 50/60Hz |
